| General information |
|---|

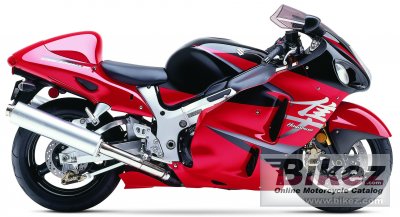

| Model: | Suzuki GSX 1300 R Hayabusa |
| Year: | 2005 |
| Category: | Sport |
| Rating: | 76.8 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1299.00 ccm (79.26 cubic inches) |
| Engine type: | In-line four |
| Stroke: | 4 |
| Compression: | 11.0:1 |
| Bore x stroke: | 81.0 x 63.0 mm (3.2 x 2.5 inches) |
| Fuel system: | Injection |
| Valves per cylinder: | 4 |
| Fuel control: | DOHC |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 217.0 kg (478.4 pounds) |
| Seat height: | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height: | 1,155 mm (45.5 inches) |
| Overall length: | 2,140 mm (84.3 inches) |
| Overall width: | 740 mm (29.1 inches) |
| Ground clearance: | 120 mm (4.7 inches) |
| Wheelbase: | 1,485 mm (58.5 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Rigid twin-spar aluminum frame minimizes weight while maintaining high torsional strength |
| Front suspension: | Inverted telescopic, coil spring, fully adjustable spring preload, 14-way adjustable rebound damping and 13-way adjustable compression damping |
| Rear suspension: | Link-type, gas/oil damped, fully adjustable spring preload, 22-way adjustable compression and rebound damping |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 190/50-ZR17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 21.00 litres (5.55 gallons) |
| Color options: | Blue/Silver, Red/Black, Gray/Black |
