| General information |
|---|

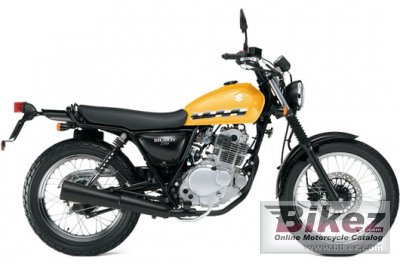

| Model: | Suzuki Grasstracker Bigboy | | Year: | 2012 | | Category: | Allround | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 249.00 ccm (15.19 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 18.77 HP (13.7 kW)) @ 7500 RPM | | Torque: | 21.00 Nm (2.1 kgf-m or 15.5 ft.lbs) @ 5500 RPM | | Compression: | 9.2:1 | | Bore x stroke: | 72.0 x 61.2 mm (2.8 x 2.4 inches) | | Valves per cylinder: | 2 | | Fuel system: | Injection | | Fuel control: | SOHC | | Ignition: | Transistorzed | | Lubrication system: | Wet sump | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Clutch: | Wet multi-plate coil spring | | Exhaust system: | Three-way catalytic muffler | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Diamaond | | Rake (fork angle): | 25.0° | | Trail: | 92 mm (3.6 inches) | | Front tyre dimensions: | 100/90-19 | | Rear tyre dimensions: | 1130/80-18 | | Front brakes: | Single disc | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Dry weight: | 139.0 kg (306.4 pounds) | | Power/weight ratio: | 0.1350 HP/kg | | Seat height: | 790 mm (31.1 inches) If adjustable, lowest setting. | | Overall length: | 2,200 mm (86.6 inches) | | Overall width: | 910 mm (35.8 inches) | | Ground clearance: | 200 mm (7.9 inches) | | Wheelbase: | 1,402 mm (55.2 inches) | | Fuel capacity: | 8.40 litres (2.22 gallons) | | Oil capacity: | 1.70 litres (0.11 quarts) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Yellow, blue, black | | Comments: | Sold in Japan. | | Further information |
|---|
