| Suzuki's profilation of this bike |
| The new DR-Z125 race inspired styling with performance to match. |
| General information |
|---|

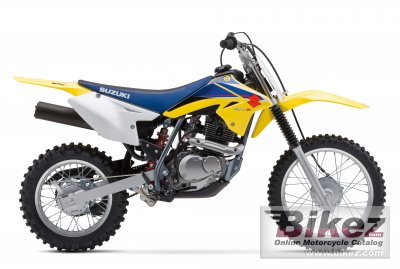

| Model: | Suzuki DR-Z125 | | Year: | 2009 | | Category: | Enduro / offroad | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 4 | | Compression: | 9.5:1 | | Bore x stroke: | 57.0 x 48.8 mm (2.2 x 1.9 inches) | | Fuel system: | Carburettor. Mikuni VM20SS | | Fuel control: | OHC | | Ignition: | CDI | | Cooling system: | Air | | Gearbox: | 5-speed | | Physical measures |
|---|
| Weight incl. oil, gas, etc: | 88.0 kg (194.0 pounds) | | Seat height: | 775 mm (30.5 inches) If adjustable, lowest setting. | | Overall height: | 1,085 mm (42.7 inches) | | Overall length: | 1,835 mm (72.2 inches) | | Overall width: | 770 mm (30.3 inches) | | Ground clearance: | 260 mm (10.2 inches) | | Wheelbase: | 1,245 mm (49.0 inches) | | Chassis and dimensions |
|---|
| Front suspension: | Telescopic, coil spring, oil damped | | Rear suspension: | Link type, coil spring, oil damped | | Front tyre dimensions: | 70/100-17 | | Rear tyre dimensions: | 90/100-14 | | Front brakes: | Expanding brake (drum brake) | | Rear brakes: | Expanding brake (drum brake) | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 4.80 litres (1.27 gallons) | | Color options: | Yellow, Black | | Further information |
|---|
