| General information |
|---|

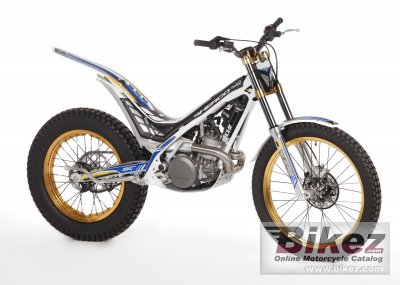

| Model: | Sherco ST 4 |
| Year: | 2012 |
| Category: | Trial |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 317.00 ccm (19.34 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Engine details: | Nikasil coated cylinder |
| Bore x stroke: | 82.0 x 60.0 mm (3.2 x 2.4 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. Keihin Ø28mm with SPS (Sherco Prompt System) |
| Fuel control: | SOHC |
| Ignition: | Leonelli electronic digital |
| Lubrication system: | Wet sump pressure lubrication |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multidisc |
| Driveline: | 5 speed sequential gearbox with security selector system to prevent false shifts. |
| Exhaust system: | Steel header pipe with an integrated aluminum muffler |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular section Chrome-moly |
| Front suspension: | Tech Ø 39 mm hydraulic telescopic fork |
| Front suspension travel: | 165 mm (6.5 inches) |
| Rear suspension: | Progressive link system with single Olle adjustable shock absorber, |
| Rear suspension travel: | 175 mm (6.9 inches) |
| Front tyre dimensions: | 2.50-21 |
| Rear tyre dimensions: | 2.75-18 |
| Front brakes: | Single disc. Hydraulic |
| Front brakes diameter: | 185 mm (7.3 inches) |
| Rear brakes: | Single disc. Hydraulic |
| Rear brakes diameter: | 145 mm (5.7 inches) |
| Wheels: | Gold anodized aluminum rim and aluminum hub, steel spokes with Michelin tube-type tire |
| Physical measures and capacities |
|---|
| Dry weight: | 73.0 kg (160.9 pounds) |
| Seat height: | 645 mm (25.4 inches) If adjustable, lowest setting. |
| Ground clearance: | 310 mm (12.2 inches) |
| Wheelbase: | 1,322 mm (52.0 inches) |
| Fuel capacity: | 2.90 litres (0.77 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
| Color options: | Black/blue |
| Comments: | Made in Spain. |
