| General moped information |
|---|
| Model: | PRC (Pro Racing Cycles) Phantom LX 50 |
| Year: | 2006 |
| Category: | Cross / motocross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Power: | 10.00 HP (7.3 kW)) @ 12000 RPM |
| Torque: | 5.00 Nm (0.5 kgf-m or 3.7 ft.lbs) @ 10800 RPM |
| Max RPM: | 13000 |
| Compression: | 10.0:1 |
| Bore x stroke: | 39.0 x 40.0 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor. PRC 19 MM |
| Fuel control: | Port control |
| Ignition: | cdi |
| Starter: | Kick |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type
final drive: | Chain |
| Clutch: | Three Shoe Clutch |
| Physical measures |
|---|
| Seat height: | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall height: | 838 mm (33.0 inches) |
| Overall length: | 1,295 mm (51.0 inches) |
| Overall width: | 737 mm (29.0 inches) |
| Ground clearance: | 279 mm (11.0 inches) |
| Wheelbase: | 965 mm (38.0 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Steel Perimater Frame |
| Rake (fork angle): | 24.0° |
| Trail: | 125 mm (4.9 inches) |
| Front suspension: | Conventional 31mm Oil |
| Front suspension travel: | 152 mm (6.0 inches) |
| Rear suspension: | monoshock PRC Adjustable coli over |
| Rear suspension travel: | 178 mm (7.0 inches) |
| Front tyre dimensions: | 2.50-10 |
| Rear tyre dimensions: | 2.50-10 |
| Front brakes: | Single disc |
| Front brakes diameter: | 160 mm (6.3 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 80 mm (3.1 inches) |
| Exhaust system: | PRC Pipe |
| Speed and acceleration |
|---|
| Top speed: | 56.3 km/h (35.0 mph) |
| Other specifications |
|---|
| Further information |
|---|
| Parts and accessories | Check out parts and accessories from our partners.  |
| Ask questions | Join the 06 PRC (Pro Racing Cycles) Phantom LX 50 discussion group,
the new PRC (Pro Racing Cycles) forum at Bikez.name or
the new Cross / motocross forum at Bikez.name. |
| Insurance, loans, tests
| Search the web for dealers, loan and insurance costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |

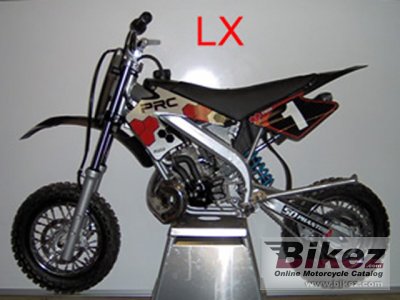

/2006/22289_0_1_4_phantom lx 50_Image credits - PRC (Pro Racing Cycles).jpg)
