| General moped information |
|---|

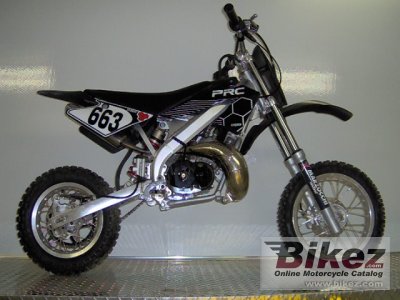

| Model: | PRC (Pro Racing Cycles) LX-RR Works |
| Year: | 2006 |
| Category: | Cross / motocross |
| Rating: | 73.5 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 50.00 ccm (3.05 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Power: | 13.50 HP (9.9 kW)) @ 14000 RPM |
| Torque: | 8.20 Nm (0.8 kgf-m or 6.0 ft.lbs) @ 11200 RPM |
| Max RPM: | 14800 |
| Compression: | 13.5:1 |
| Bore x stroke: | 41.0 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system: | Carburettor. PRC 19MM |
| Fuel control: | Port control |
| Ignition: | Progressive CDI |
| Starter: | Kick |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type
final drive: | Chain |
| Clutch: | Three Disk PRC Racing clutch |
| Physical measures |
|---|
| Dry weight: | 36.0 kg (79.4 pounds) |
| Seat height: | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall height: | 914 mm (36.0 inches) |
| Overall length: | 1,346 mm (53.0 inches) |
| Overall width: | 787 mm (31.0 inches) |
| Ground clearance: | 279 mm (11.0 inches) |
| Wheelbase: | 1,016 mm (40.0 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Aluminum Perimeter (first mini perimetrer kid aluminum frame in the world |
| Rake (fork angle): | 26.0° |
| Trail: | 125 mm (4.9 inches) |
| Front suspension: | Marzocchi 35mm Inverted Shiver Forks |
| Front suspension travel: | 211 mm (8.3 inches) |
| Rear suspension: | Olins 36DPW |
| Rear suspension travel: | 269 mm (10.6 inches) |
| Front tyre dimensions: | 100/90-12 |
| Rear tyre dimensions: | 3.0-10 |
| Front brakes: | Single disc |
| Front brakes diameter: | 160 mm (6.3 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 140 mm (5.5 inches) |
| Speed and acceleration |
|---|
| Top speed: | 80.5 km/h (50.0 mph) |
| Power/weight ratio: | 0.3750 HP/kg |
| Other specifications |
|---|
