| General information |
|---|

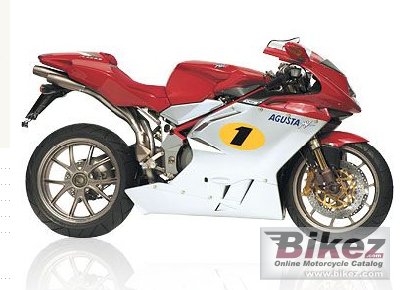

| Model: | MV Agusta F4 Ago |
| Year: | 2009 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 748.93 ccm (45.70 cubic inches) |
| Engine type: | In-line four, four-stroke |
| Power: | 146.00 HP (106.6 kW)) @ 13000 RPM |
| Torque: | 82.00 Nm (8.4 kgf-m or 60.5 ft.lbs) |
| Top speed: | 285.8 km/h (177.6 mph) |
| Max RPM: | 13900 |
| Compression: | 13.0:1 |
| Bore x stroke: | 73.7 x 43.2 mm (2.9 x 1.7 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. “Weber Marelli” 1,6 M ignition - injection integrated system; induction discharge electronic ignition,“Multipoint” electronic injection |
| Fuel control: | DOHC |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Clutch: | Wet, multi - disc |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | CrMo Steel tubular trellis and aluminium alloy |
| Front suspension: | Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
| Rear suspension: | Progressive single shock absorber with rebound compression damping and spring preload |
| Front tyre dimensions: | 120/65-ZR17 |
| Rear tyre dimensions: | 190/50-ZR17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 210 mm (8.3 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 191.0 kg (421.1 pounds) |
| Power/weight ratio: | 0.7644 HP/kg |
| Seat height: | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Ground clearance: | 130 mm (5.1 inches) |
| Wheelbase: | 1,398 mm (55.0 inches) |
| Fuel capacity: | 21.00 litres (5.55 gallons) |
| Reserve fuel capacity: | 4.00 litres (1.06 gallons) |
| Other specifications |
|---|
| Color options: | Red/white/yellow |
| Comments: | Special edition bike. |
