| General information |
|---|

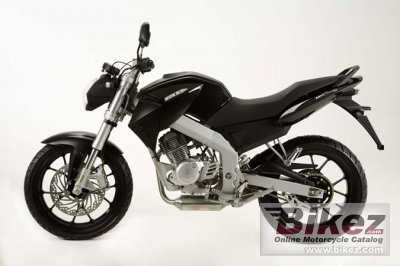

| Model: | Motorhispania MH7 125 Air Naked |
| Year: | 2009 |
| Category: | Naked bike |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 125.00 ccm (7.63 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 13.00 HP (9.5 kW)) @ 8600 RPM |
| Compression: | 10.0:1 |
| Bore x stroke: | 58.6 x 52.0 mm (2.3 x 2.0 inches) |
| Fuel system: | Carburettor. Mikuni VM 20 |
| Starter: | Electric & kick |
| Lubrication system: | Euro 3 |
| Cooling system: | Air |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 120.0 kg (264.6 pounds) |
| Seat height: | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Overall length: | 1,980 mm (78.0 inches) |
| Overall width: | 750 mm (29.5 inches) |
| Wheelbase: | 1,310 mm (51.6 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Delta box double steel tube |
| Front suspension: | Paioli Upside down fork |
| Rear suspension: | Ollé monoshock |
| Rear suspension travel: | 130 mm (5.1 inches) |
| Front tyre dimensions: | 100/80-17 |
| Rear tyre dimensions: | 130/70-17 |
| Front brakes: | Single disc. Tecme |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc. Tecme |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.1083 HP/kg |
| Other specifications |
|---|
| Color options: | Orange, black |
| Comments: | MH is a Spanish brand. |
