| General information |
|---|

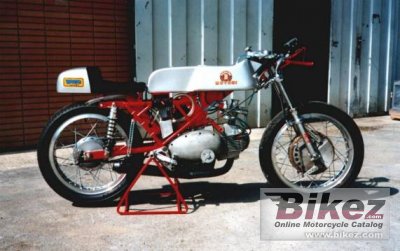

| Model: | Motobi Zanzani 250 6 Tiranti |
| Year: | 2009 |
| Category: | Classic |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 249.00 ccm (15.19 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Compression: | 11.0:1 |
| Bore x stroke: | 75.0 x 57.0 mm (3.0 x 2.2 inches) |
| Fuel system: | Carburettor. Dell´Orto phf with horizontal conversion |
| Valves per cylinder: | 2 |
| Ignition: | Crane cams electronic ignition |
| Starter: | Electric |
| Lubrication system: | Oil pump |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 101.0 kg (222.7 pounds) |
| Overall height: | 920 mm (36.2 inches) |
| Overall length: | 1,920 mm (75.6 inches) |
| Overall width: | 400 mm (15.7 inches) |
| Ground clearance: | 195 mm (7.7 inches) |
| Wheelbase: | 1,310 mm (51.6 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Zanzani racing frame |
| Front suspension: | Ceriani |
| Rear suspension: | Aluminum work shocks |
| Front tyre dimensions: | 2.78-18 |
| Rear tyre dimensions: | 110/80-18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 210 mm (8.3 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 160 mm (6.3 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 16.00 litres (4.23 gallons) |
| Oil capacity: | 1.50 litres (0.10 quarts) |
| Color options: | Red/white, gray |
| Comments: | Made by Primo Zanzani, Italy. |
