| General information |
|---|

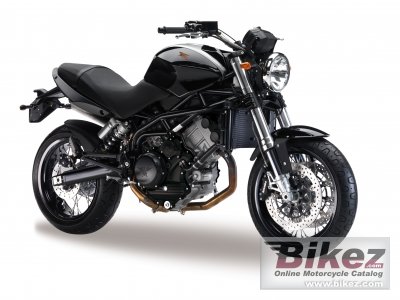

| Model: | Moto Morini 9 1/2 |
| Year: | 2010 |
| Category: | Naked bike |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1187.00 ccm (72.43 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 115.32 HP (84.2 kW)) @ 8500 RPM |
| Torque: | 102.00 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 6700 RPM |
| Bore x stroke: | 107.0 x 66.0 mm (4.2 x 2.6 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Magneti Marelli indirect electronic injection with 54 mm throttle body |
| Fuel control: | DOHC |
| Ignition: | I.A.W. electronic |
| Lubrication system: | Forced with trochoidal pump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Clutch: | Wet, multi-plate type |
| Exhaust system: | Silencer, 3-way catalytic converter with oxygen sensor. Euro 3. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Verlicchi high strength steel tube tellis frame |
| Front suspension: | Marzocchi upside-down fork |
| Rear suspension: | Single lateral shock absorber with fully adjustable pibby tank |
| Front tyre dimensions: | 120/70-R17 |
| Rear tyre dimensions: | 180/55-R17 |
| Front brakes: | Double disc. Bremo, 4-piston calipers |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Bremo, 2-piston calipers |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 198.0 kg (436.5 pounds) |
| Power/weight ratio: | 0.5824 HP/kg |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall length: | 2,170 mm (85.4 inches) |
| Overall width: | 865 mm (34.1 inches) |
| Ground clearance: | 162 mm (6.4 inches) |
| Fuel capacity: | 21.00 litres (5.55 gallons) |
| Reserve fuel capacity: | 4.50 litres (1.19 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Black/red, black/silver |
