Moto Guzzi's profilation of this bike |
This is the closest to the original V7 concept, not only because it shares its name with the first V7 signed by Lino Tonti, but because if faithfully cites the same riding philosophy, that of a touring bike with sophisticated finishings and exclusive technical solutions. |
General information |
Model
|

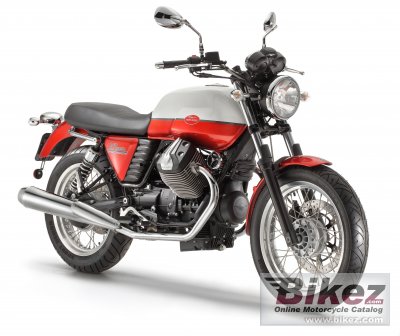

Moto Guzzi V7 Special |
Model year
|
2012 |
Category
|
Classic |
Rating
|
3.2 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
744.0 ccm (45.40 cubic inches) |
Engine type
|
V2, four-stroke |
Engine details
|
V 90 twin |
Power output
|
50.0 HP (36.5 kW)) @ 6200 RPM |
Torque
|
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 2800 RPM |
Compression
|
9.6:1 |
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Injection |
Fuel control
|
Overhead Cams (OHC) |
Lubrication system
|
By lobes with pressure pump |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Clutch
|
Dry single plate with flexible couplings |
Driveline
|
Helicoidal gears, ratio 16/21=1:1.3125. Final drive: Shaft drive, ratio 4.825. |
Emission details
|
Three-way catalytic converter with double lambda probe |
Chassis, suspension, brakes and wheels |
Frame type
|
ALS steel tubular dismountable twin cradle |
Rake (fork angle)
|
27.5° |
Trail
|
109 mm (4.3 inches) |
Front suspension
|
Telescopic forks |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Oscillating light alloy swingarm with 2 pre-load adjustable shock absorbers. |
Rear wheel travel
|
118 mm (4.6 inches) |
Front tire
|
100/90-18 |
Rear tire
|
130/80-17 |
Front brakes
|
Single disc. Bremo stainless steel disc 4 opposed calipers of differing diameters |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc. Bremo |
Diameter
|
260 mm (10.2 inches) |
Wheels
|
Polished aluminium, spoked. |
Physical measures and capacities |
Dry weight
|
179.0 kg (394.6 pounds) |
Power/weight ratio
|
0.2793 HP/kg |
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
Overall height
|
1115 mm (43.9 inches) |
Overall length
|
2185 mm (86.0 inches) |
Overall width
|
805 mm (31.7 inches) |
Ground clearance
|
182 mm (7.2 inches) |
Fuel capacity
|
22.00 litres (5.81 US gallons) |
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
Other specifications |
Color options
|
Red/white, yellow/black |
Starter
|
Electric |
