| General information |
|---|

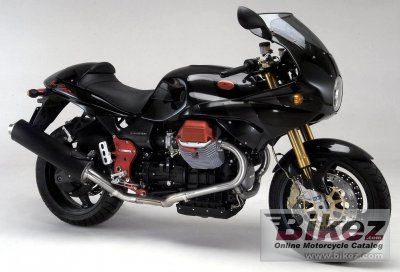

| Model: | Moto Guzzi V11 Le Mans Nero Corsa |
| Year: | 2004 |
| Category: | Sport touring |
| Rating: | 67.7 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1064.00 ccm (64.93 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 89.85 HP (65.6 kW)) @ 8200 RPM |
| Torque: | 94.00 Nm (9.6 kgf-m or 69.3 ft.lbs) @ 5400 RPM |
| Compression: | 9.8:1 |
| Bore x stroke: | 98.0 x 80.0 mm (3.9 x 3.1 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Injection |
| Fuel control: | OHC |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Monobeam frame |
| Rake (fork angle): | 25.0° |
| Trail: | 103 mm (4.1 inches) |
| Front suspension: | Ohlins USD fork, 43 mm compression/extension adjustable |
| Front suspension travel: | 120 mm (4.7 inches) |
| Rear suspension: | Cantilever swing arm with Ohlins mono shock compression/extension/preload adjustable |
| Rear suspension travel: | 128 mm (5.0 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 282 mm (11.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 226.0 kg (498.2 pounds) |
| Power/weight ratio: | 0.3976 HP/kg |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height: | 1,210 mm (47.6 inches) |
| Overall length: | 2,150 mm (84.6 inches) |
| Overall width: | 785 mm (30.9 inches) |
| Ground clearance: | 178 mm (7.0 inches) |
| Wheelbase: | 1,490 mm (58.7 inches) |
| Fuel capacity: | 20.70 litres (5.47 gallons) |
| Reserve fuel capacity: | 5.00 litres (1.32 gallons) |
| Other specifications |
|---|
| Color options: | Nero Corsa |
| Comments: | V11 Le Mans Nero Corsa -Sport Touring redefined. The latest 90º V-Twin with added crossover pipe and increased compression ratio to 9.8:1. Brembo Gold Series brakes and Ohlins suspension. Strikingly rich checkered flag graphics in Midnight Black and Dark Silver with carbon fiber front fender. Add optional Moto Guzzi soft side bags and tank bag and you've got a comfortable Sport Touring Bike that will get you to your favorite track day in style.
|
