| General information |
|---|

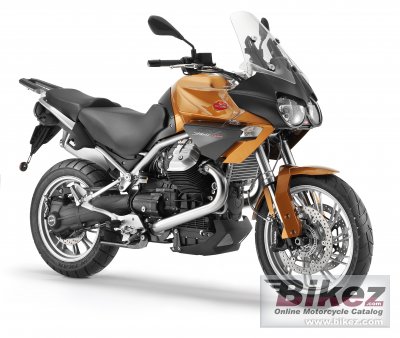

| Model: | Moto Guzzi Stelvio 8V |
| Year: | 2012 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | Euro 13150. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1151.00 ccm (70.23 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 90° V-twin. |
| Power: | 103.26 HP (75.4 kW)) @ 7500 RPM |
| Torque: | 113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800 RPM |
| Compression: | 11.0:1 |
| Bore x stroke: | 95.0 x 81.2 mm (3.7 x 3.2 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection |
| Fuel control: | OHV |
| Ignition: | Multipoint sequential electronic ignition, Magneti Marelli |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Single-disc with integrated anti-vibration buffer |
| Driveline: | Compact reactive cardan shaft drive system called CA.R.C.; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666 |
| Emission details: | 3-way catalysed with Lambda probe. Euro 3. |
| Exhaust system: | Stainless steel two-into-one |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular in high-strength steel with integrated engine |
| Rake (fork angle): | 27.0° |
| Trail: | 125 mm (4.9 inches) |
| Front suspension: | Fork with Ø 50mm inverted stems, fully adjustable (spring preload and hydraulic compression and rebound damping) |
| Front suspension travel: | 170 mm (6.7 inches) |
| Rear suspension: | Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression). |
| Rear suspension travel: | 155 mm (6.1 inches) |
| Front tyre dimensions: | 110/80-R19 |
| Rear tyre dimensions: | 180/55-R17 |
| Front brakes: | Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons. |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons. |
| Rear brakes diameter: | 282 mm (11.1 inches) |
| Wheels: | Tubeless with spokes |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 257.0 kg (566.6 pounds) |
| Seat height: | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Alternate seat height: | 840 mm (33.1 inches) If adjustable, highest setting. |
| Overall height: | 1,475 mm (58.1 inches) |
| Overall length: | 2,250 mm (88.6 inches) |
| Overall width: | 1,025 mm (40.4 inches) |
| Ground clearance: | 210 mm (8.3 inches) |
| Wheelbase: | 1,535 mm (60.4 inches) |
| Fuel capacity: | 32.00 litres (8.45 gallons) |
| Reserve fuel capacity: | 7.00 litres (1.85 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Electrical: | 12 V 18 Ah battery |
| Color options: | Black, bronze, white |
