| Moto Guzzi's profilation of this bike |
| The Stelvio is a winding road immersed in the shadow of the Ortles Massif, with 84 hairpin bends reaching a height of 2,757 metres, linking Valtellina with Val Venosta. For motorcyclists, and other road-lovers, this road built in 1855 is a legendary route combining the difficulties of a winding mountain road with the beauty of nature, condensed into an extraordinary intense riding experience. |
| General information |
|---|

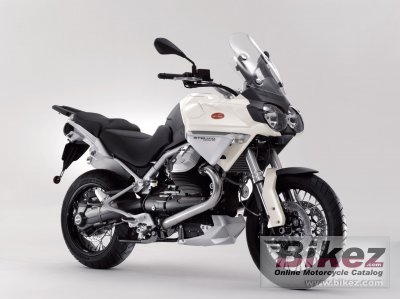

| Model: | Moto Guzzi Stelvio 4V | | Year: | 2012 | | Category: | Enduro / offroad | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 14990. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 1151.00 ccm (70.23 cubic inches) | | Engine type: | V2, four-stroke | | Engine details: | 90° V-twin. | | Power: | 103.26 HP (75.4 kW)) @ 7500 RPM | | Torque: | 108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400 RPM | | Compression: | 11.0:1 | | Bore x stroke: | 95.0 x 81.2 mm (3.7 x 3.2 inches) | | Valves per cylinder: | 2 | | Fuel system: | Injection | | Fuel control: | OHV | | Ignition: | Multipoint sequential electronic ignition, Magneti Marelli | | Cooling system: | Oil & air | | Gearbox: | 6-speed | Transmission type,
final drive: | Shaft drive (cardan) | | Clutch: | Single-disc with integrated anti-vibration buffer | | Driveline: | Compact reactive cardan shaft drive system called CA.R.C.; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666 | | Emission details: | 3-way catalysed with Lambda probe. Euro 3. | | Exhaust system: | Stainless steel two-into-one | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular in high-strength steel with integrated engine | | Rake (fork angle): | 27.0° | | Trail: | 125 mm (4.9 inches) | | Front suspension: | Fork with Ø 50mm inverted stems, fully adjustable (spring preload and hydraulic compression and rebound damping) | | Front suspension travel: | 170 mm (6.7 inches) | | Rear suspension: | Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression). | | Rear suspension travel: | 155 mm (6.1 inches) | | Front tyre dimensions: | 110/80-R19 | | Rear tyre dimensions: | 180/55-R17 | | Front brakes: | Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons. | | Front brakes diameter: | 320 mm (12.6 inches) | | Rear brakes: | Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons. | | Rear brakes diameter: | 282 mm (11.1 inches) | | Wheels: | Tubeless with spokes | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 251.0 kg (553.4 pounds) | | Seat height: | 840 mm (33.1 inches) If adjustable, lowest setting. | | Overall height: | 1,475 mm (58.1 inches) | | Overall length: | 2,250 mm (88.6 inches) | | Overall width: | 1,025 mm (40.4 inches) | | Ground clearance: | 210 mm (8.3 inches) | | Wheelbase: | 1,535 mm (60.4 inches) | | Fuel capacity: | 18.00 litres (4.76 gallons) | | Reserve fuel capacity: | 4.50 litres (1.19 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Electrical: | 12 V 18 Ah battery | | Color options: | Guzzi Black | | Comments: | Windshield | | Further information |
|---|
