| General information |
|---|

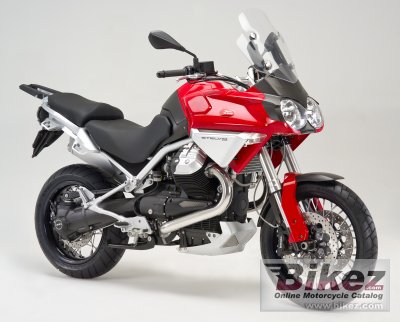

| Model: | Moto Guzzi Stelvio |
| Year: | 2008 |
| Category: | Sport |
| Rating: | 70.8 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1151.00 ccm (70.23 cubic inches) |
| Engine type: | Twin |
| Stroke: | 4 |
| Power: | 108.35 HP (79.1 kW)) @ 7500 RPM |
| Torque: | 108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400 RPM |
| Compression: | 11.0:1 |
| Bore x stroke: | 95.0 x 81.2 mm (3.7 x 3.2 inches) |
| Fuel system: | Injection. Multipoint sequential electronic injection, |
| Starter: | Electric |
| Lubrication system: | Oil bath |
| Gearbox: | 6-speed |
| Clutch: | Single plate with integrated flexible couplings |
| Physical measures |
|---|
| Dry weight: | 214.0 kg (471.8 pounds) |
| Seat height: | 840 mm (33.1 inches) If adjustable, lowest setting. |
| Overall height: | 1,475 mm (58.1 inches) |
| Overall length: | 2,250 mm (88.6 inches) |
| Overall width: | 1,025 mm (40.4 inches) |
| Ground clearance: | 210 mm (8.3 inches) |
| Chassis and dimensions |
|---|
| Frame type: | High tensile steel tubular twin cradle |
| Rake (fork angle): | 27.0° |
| Front suspension: | Upside down Ø 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers. |
| Front suspension travel: | 170 mm (6.7 inches) |
| Rear suspension: | Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression). |
| Rear suspension travel: | 155 mm (6.1 inches) |
| Front tyre dimensions: | 110/90-19 |
| Rear tyre dimensions: | 180/55-17 |
| Front brakes: | Double disc. Twin floating 320 mm stainless steel wave discs, radial calipers with 4 opposed pistons. |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Single 282 mm fixed stainless steel disc, floating caliper with 2 parallel pistons. |
| Rear brakes diameter: | 282 mm (11.1 inches) |
| Exhaust system: | Stainless steel two-into-one 3-way catalysed with Lambda probe. |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.5063 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 18.00 litres (4.76 gallons) |
| Reserve fuel capacity: | 3.30 litres (0.87 gallons) |
