| General information |
|---|

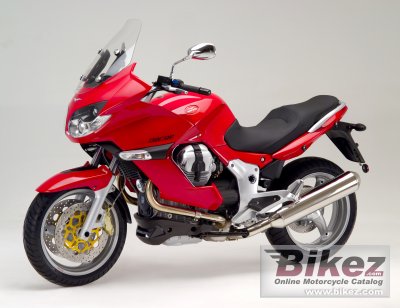

| Model: | Moto Guzzi Norge 850 |
| Year: | 2009 |
| Category: | Sport touring |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 850.00 ccm (51.87 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 95.00 HP (69.3 kW)) @ 7500 RPM |
| Torque: | 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 5800 RPM |
| Compression: | 9.8:1 |
| Bore x stroke: | 95.0 x 81.2 mm (3.7 x 3.2 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Injection. Weber-Marelli electronic fuel injection with stepper motor control |
| Ignition: | Magneti Marelli IAW5A, ¥á-n type; 2 ¨ª 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition |
| Lubrication system: | Splash |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Dry plate |
| Exhaust system: | Stainless steel, 2 into 1 type with catalytic converter, height-adjustable muffler |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular cradle, high tensile steel |
| Rake (fork angle): | 25.0° |
| Trail: | 120 mm (4.7 inches) |
| Front suspension: | Telescopic hydraulic fork with ¨ª 45 mm, preload adjustable |
| Front suspension travel: | 120 mm (4.7 inches) |
| Rear suspension: | Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic) |
| Rear suspension travel: | 140 mm (5.5 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Double disc. Stainless steel floating disc, 4 piston calipers. ABS. |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Steel disc, 2 piston caliper |
| Rear brakes diameter: | 282 mm (11.1 inches) |
| Physical measures and capacities |
|---|
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height: | 1,125 mm (44.3 inches) |
| Overall length: | 2,195 mm (86.4 inches) |
| Overall width: | 870 mm (34.3 inches) |
| Ground clearance: | 185 mm (7.3 inches) |
| Wheelbase: | 1,495 mm (58.9 inches) |
| Fuel capacity: | 23.00 litres (6.08 gallons) |
| Reserve fuel capacity: | 4.00 litres (1.06 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Silver |
