| Moto Guzzi's profilation of this bike |
| The TL version is a clear demonstration that Moto Guzzi pays great attention to a rider¡¯s needs. The ¡°Norge Project¡± aims at offering every rider the opportunity of choosing between equipment that has apparently small but significant differences. |
| General information |
|---|

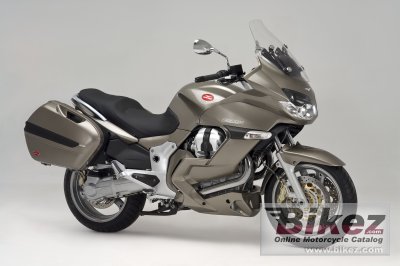

| Model: | Moto Guzzi Norge 1200 TL | | Year: | 2008 | | Category: | Touring | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 1151.00 ccm (70.23 cubic inches) | | Engine type: | V2, four-stroke | | Power: | 88.50 HP (64.6 kW)) @ 7500 RPM | | Torque: | 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 5800 RPM | | Compression: | 9.8:1 | | Bore x stroke: | 95.0 x 81.2 mm (3.7 x 3.2 inches) | | Fuel system: | Injection. Weber-Marelli electronic fuel injection with stepper motor control | | Ignition: | Magneti Marelli IAW5A, ¥á-n type; 2 ¨ª 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition | | Lubrication system: | Splash | | Cooling system: | Air | | Gearbox: | 6-speed | Transmission type,
final drive: | Shaft drive (cardan) | | Clutch: | Dry | | Exhaust system: | Stainless steel, 2 into 1 type with catalytic converter, height-adjustable muffler | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular cradle, high tensile steel | | Rake (fork angle): | 25.0° | | Trail: | 120 mm (4.7 inches) | | Front suspension: | Telescopic hydraulic fork with ¨ª 45 mm, preload adjustable | | Front suspension travel: | 110 mm (4.3 inches) | | Rear suspension: | Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic) | | Rear suspension travel: | 110 mm (4.3 inches) | | Front tyre dimensions: | 120/70-ZR17 | | Rear tyre dimensions: | 180/55-ZR17 | | Front brakes: | Double disc | | Front brakes diameter: | 320 mm (12.6 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 282 mm (11.1 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 246.0 kg (542.3 pounds) | | Power/weight ratio: | 0.3598 HP/kg | | Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. | | Overall height: | 1,125 mm (44.3 inches) | | Overall length: | 2,195 mm (86.4 inches) | | Overall width: | 870 mm (34.3 inches) | | Ground clearance: | 185 mm (7.3 inches) | | Wheelbase: | 1,495 mm (58.9 inches) | | Fuel capacity: | 23.00 litres (6.08 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Further information |
|---|
