| General information |
|---|

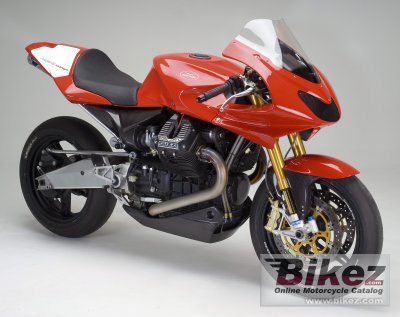

| Model: | Moto Guzzi MGS-01 Corsa |
| Year: | 2007 |
| Category: | Sport |
| Rating: | 59.7 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1225.00 ccm (74.75 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Power: | 128.00 HP (93.4 kW)) @ 8000 RPM |
| Torque: | 113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 6200 RPM |
| Compression: | 11.6:1 |
| Bore x stroke: | 100.0 x 78.0 mm (3.9 x 3.1 inches) |
| Fuel system: | Injection. Magneti Marelli IAW Multipoint phased sequential fuel injection |
| Fuel control: | OHV |
| Ignition: | Marelli IA 15M Electronic Digital |
| Lubrication system: | Wet sump, forced oil, cartridge filter |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Clutch: | Sintering Double Disc Hydraulic Drive |
| Physical measures |
|---|
| Dry weight: | 192.0 kg (423.3 pounds) |
| Seat height: | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall height: | 1,180 mm (46.5 inches) |
| Overall length: | 2,070 mm (81.5 inches) |
| Overall width: | 780 mm (30.7 inches) |
| Wheelbase: | 10 mm (0.4 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Rectangular Section Single Beam |
| Rake (fork angle): | 24.0° |
| Trail: | 95 mm (3.7 inches) |
| Front suspension: | Ohlins Adjustable USD Fork |
| Front suspension travel: | 120 mm (4.7 inches) |
| Rear suspension: | Aluminum Box Swingarm with Ohlins Adjustable Monoshock |
| Rear suspension travel: | 125 mm (4.9 inches) |
| Front tyre dimensions: | 120/70-17 |
| Rear tyre dimensions: | 180/55-17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.6667 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 18.50 litres (4.89 gallons) |
| Color options: | Red |
