Moto Guzzi MGS-01 Corsa 20042004 Moto Guzzi MGS-01 Corsa specifications, pictures, reviews and rating |

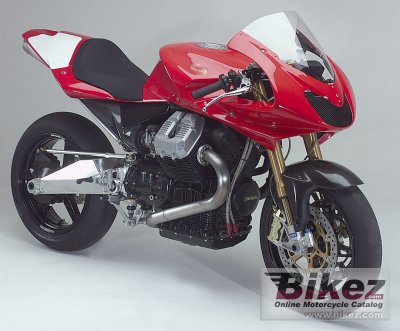

2004 Moto Guzzi MGS-01 Corsa. Image credits - Moto Guzzi.
| General information | |
|---|---|
| Model | Moto Guzzi MGS-01 Corsa |
| Year of manufacture | 2004 |
| Type | Sport |
| Rating | 2.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1256.0 ccm (76.64 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 122.0 HP (89.1 kW)) @ 8000 RPM |
| Torque | 112.8 Nm (11.5 kgf-m or 83.2 ft.lbs) @ 6400 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 100.0 x 80.0 mm (3.9 x 3.1 inches) |
| Valves per cylinder | 4 |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Chassis, suspension, brakes and wheels | |
| Frame type | Rectangular section singel-beam ALS 450 |
| Rake (fork angle) | 23.5° |
| Trail | 95 mm (3.7 inches) |
| Front suspension | Ohlins 43 mm Adjustable USD Fork |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Aluminum Box Swingarm with Ohlins Adjustable Monoshock |
| Rear wheel travel | 110 mm (4.3 inches) |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 192.0 kg (423.3 pounds) |
| Power/weight ratio | 0.6354 HP/kg |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall height | 1180 mm (46.5 inches) |
| Overall length | 2010 mm (79.1 inches) |
| Overall width | 780 mm (30.7 inches) |
| Wheelbase | 1428 mm (56.2 inches) |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Other specifications | |
| Comments | MGS-01 Corsa --Unleashed creativity breeds the MGS/01 Corsa, a Moto Guzzi with the ultimate sporting temperament. 1256cc, 90º V-Twin. Cosworth triple ring racing pistons, and nymonic valves. One-piece carbon fiber body design. Completely adjustable Ohlins suspension. OZ wheels. Aluminum box section swing arm. MGS/01's overall stunning aerodynamic design ensures perfect agility and performance on and off the race track |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Moto Guzzi MGS-01 Corsa discussion group or the general Moto Guzzi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Moto Guzzi. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2004 Moto Guzzi MGS-01 Corsa for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Moto Guzzi bike | |
Engine performance for the 2004 Moto Guzzi MGS-01 Corsa:  (65.6 out of 100)Click here for complete rating. |
|
