| General information |
|---|

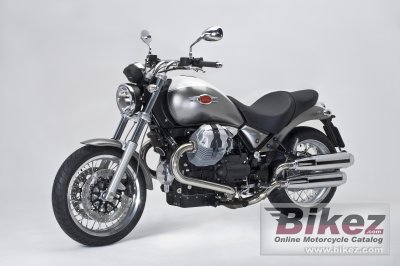

| Model: | Moto Guzzi Bellagio |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | 67.6 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 935.60 ccm (57.09 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 73.75 HP (53.8 kW)) @ 7200 RPM |
| Torque: | 78.00 Nm (8.0 kgf-m or 57.5 ft.lbs) @ 6000 RPM |
| Compression: | 10.0:1 |
| Bore x stroke: | 95.0 x 66.0 mm (3.7 x 2.6 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Injection. Multipoint sequential electronic injection, Magneti Marelli IAW phased, alfa-n system; 2 40 mm throttle bodies with Weber IW 031 injectors |
| Ignition: | Digital electronic with Magneti Marelli IAW 15RC inductive discharge |
| Lubrication system: | Helicoidal gears, ratio 24/35 = 1 : 1.458 |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Dry mechanically operated twin plate |
| Exhaust system: | Maximum Maximum power |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Very rigid high tensile steel tubular twin cradle |
| Rake (fork angle): | 28.0° |
| Trail: | 138 mm (5.4 inches) |
| Front suspension: | Marzocchi 45 mm adjustable front forks |
| Front suspension travel: | 330 mm (13.0 inches) |
| Rear suspension: | Single swingarm with progressive action and ndash |
| Rear suspension travel: | 330 mm (13.0 inches) |
| Front tyre dimensions: | 120/70-18 |
| Front brakes: | Double disc. Stainless steel discs, floating Brembo calipers with 2 parallel pistons. |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Fixed stainless steel disc, floating Brembo calipers with 2 parallel pistons. |
| Rear brakes diameter: | 282 mm (11.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 224.0 kg (493.8 pounds) |
| Power/weight ratio: | 0.3292 HP/kg |
| Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height: | 1,310 mm (51.6 inches) |
| Overall length: | 2,270 mm (89.4 inches) |
| Overall width: | 890 mm (35.0 inches) |
| Ground clearance: | 150 mm (5.9 inches) |
| Wheelbase: | 1,570 mm (61.8 inches) |
| Fuel capacity: | 19.00 litres (5.02 gallons) |
| Reserve fuel capacity: | 4.00 litres (1.06 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Black |
