| MBK's profilation of this bike |

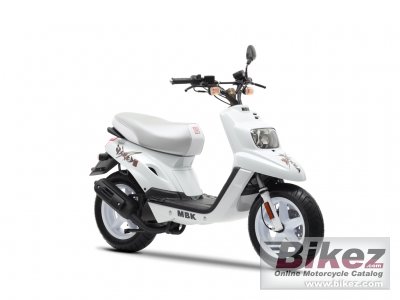

| This is the Booster Naked with 13inch wheels. Or the Booster 13inch, with Naked design. Whichever way you look at the Booster Naked 13inch, itīs brilliant. Great handling and stability thanks to 13in wheels, and the pure, stripped-down appeal of the Naked. |
| General moped information |
|---|
| Model: | MBK Booster 13-inch Naked | | Year: | 2012 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 49.20 ccm (3.00 cubic inches) | | Engine type: | Single cylinder, two-stroke | | Engine details: | Reed valve intake system | | Power: | 3.22 HP (2.4 kW)) @ 6500 RPM | | Torque: | 3.60 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM | | Compression: | 7.2:1 | | Bore x stroke: | 40.0 x 70.0 mm (1.6 x 2.8 inches) | | Fuel system: | Carburettor | | Ignition: | CDI | | Lubrication system: | Separate lubrication | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Clutch: | Automatic centrifugal | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic fork | | Front suspension travel: | 70 mm (2.8 inches) | | Rear suspension: | Unit swing | | Rear suspension travel: | 70 mm (2.8 inches) | | Front tyre dimensions: | 120/70-13 | | Rear tyre dimensions: | 130/70-13 | | Front brakes: | Single disc | | Front brakes diameter: | 180 mm (7.1 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 110 mm (4.3 inches) | | Wheels: | Alloy rims | | Physical measures and capacities |
|---|
| Dry weight: | 75.0 kg (165.3 pounds) | | Weight incl. oil, gas, etc: | 82.0 kg (180.8 pounds) | | Power/weight ratio: | 0.0429 HP/kg | | Seat height: | 768 mm (30.2 inches) If adjustable, lowest setting. | | Overall length: | 1,685 mm (66.3 inches) | | Overall width: | 675 mm (26.6 inches) | | Ground clearance: | 124 mm (4.9 inches) | | Wheelbase: | 1,172 mm (46.1 inches) | | Fuel capacity: | 5.30 litres (1.40 gallons) | | Oil capacity: | 1.20 litres (0.08 quarts) | | Other specifications |
|---|
| Starter: | Electric & kick | | Instruments: | Digital dash display | | Color options: | Engine type | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 12 MBK Booster 13-inch Naked discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
