| General information |
|---|

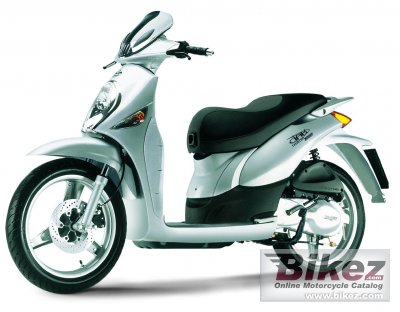

| Model: | Malaguti Ciak Master 125 |
| Year: | 2006 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Compression: | 9.6:1 |
| Bore x stroke: | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Fuel system: | Carburettor |
| Valves per cylinder: | 4 |
| Fuel control: | SOHC |
| Starter: | Electric & kick |
| Cooling system: | Air |
Transmission type
final drive: | Belt |
| Clutch: | Automatic centrifugal dry clutch |
| Physical measures |
|---|
| Dry weight: | 117.0 kg (257.9 pounds) |
| Seat height: | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall height: | 1,200 mm (47.2 inches) |
| Overall length: | 2,020 mm (79.5 inches) |
| Wheelbase: | 1,380 mm (54.3 inches) |
| Chassis and dimensions |
|---|
| Frame type: | High Resistance tubular steel frame split at the footboard level |
| Front suspension: | Telescopic hydraulic fork |
| Rear suspension: | Swinging engine and 2 hydraulic shock absorbers |
| Front tyre dimensions: | 100/80-16 |
| Rear tyre dimensions: | 110/80-16 |
| Front brakes: | Single disc |
| Front brakes diameter: | 230 mm (9.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 130 mm (5.1 inches) |
| Exhaust system: | Catalyst exhaust system |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 8.00 litres (2.11 gallons) |
