| General information |
|---|

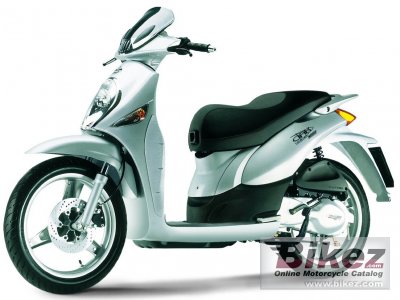

| Model: | Malaguti Ciak125 |
| Year: | 2005 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 125.00 ccm (7.63 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 10.05 HP (7.3 kW)) @ 8000 RPM |
| Torque: | 9.80 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 6500 RPM |
| Compression: | 9.6:1 |
| Bore x stroke: | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Fuel system: | Carburettor |
| Fuel control: | SOHC |
| Ignition: | Electronic |
| Cooling system: | Air |
Transmission type
final drive: | Belt |
| Clutch: | Automatic centrifugal dry clutch |
| Physical measures |
|---|
| Dry weight: | 114.0 kg (251.3 pounds) |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height: | 1,170 mm (46.1 inches) |
| Overall length: | 1,870 mm (73.6 inches) |
| Overall width: | 755 mm (29.7 inches) |
| Wheelbase: | 1,350 mm (53.1 inches) |
| Chassis and dimensions |
|---|
| Frame type: | High resistance tubular steel frame |
| Front suspension: | By telescopic-hydraulic fork, |
| Front suspension travel: | 33 mm (1.3 inches) |
| Rear suspension: | By swinging engine by 2 hydraulic shock absorbers |
| Front brakes: | Single disc |
| Front brakes diameter: | 230 mm (9.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 130 mm (5.1 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.0882 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 8.00 litres (2.11 gallons) |
