| General moped information |
|---|

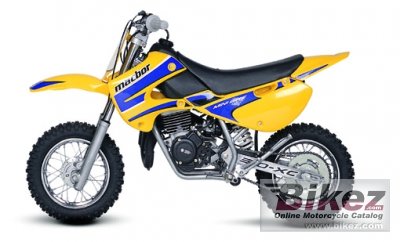

| Model: | Macbor XC510S |
| Year: | 2007 |
| Category: | Minibike, cross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 49.82 ccm (3.04 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor |
| Starter: | Kick |
| Cooling system: | Air |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Seat height: | 580 mm (22.8 inches) If adjustable, lowest setting. |
| Overall length: | 1,270 mm (50.0 inches) |
| Wheelbase: | 900 mm (35.4 inches) |
| Chassis and dimensions |
|---|
| Front suspension: | Mechanical fork |
| Rear suspension: | Single shock absorber |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 3.25 litres (0.86 gallons) |
| Color options: | Blue/yellow |
| Comments: | Intended for children 4-9 years old. |
