| General information |
|---|

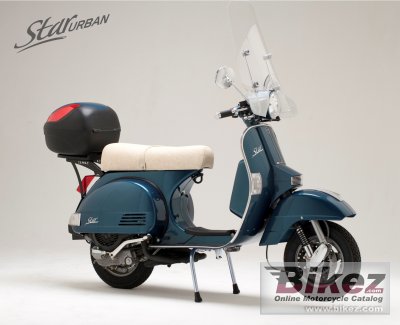

| Model: | LML Star Urban |
| Year: | 2012 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 124.88 ccm (7.62 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 7.83 HP (5.7 kW)) @ 6000 RPM |
| Torque: | 9.15 Nm (0.9 kgf-m or 6.7 ft.lbs) @ 5000 RPM |
| Top speed: | 83.0 km/h (51.6 mph) |
| Bore x stroke: | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor. Keihin PB 18 |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Belt |
| Fuel consumption: | 1.72 litres/100 km (58.1 km/l or 136.76 mpg) |
| Greenhouse gases: | 39.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Emission details: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Welded steel pipes |
| Front suspension: | Swing-arm, helical spring an hydraulic dampers double effect |
| Rear suspension: | Engine as swing arm, helical spring an hydraulic dampers double effect |
| Front tyre dimensions: | 3.50-10 |
| Rear tyre dimensions: | 3.50-10 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 119.0 kg (262.4 pounds) |
| Power/weight ratio: | 0.0658 HP/kg |
| Seat height: | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall length: | 1,760 mm (69.3 inches) |
| Wheelbase: | 1,235 mm (48.6 inches) |
| Fuel capacity: | 5.50 litres (1.45 gallons) |
| Reserve fuel capacity: | 1.00 litres (0.26 gallons) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Light: | Halogen head light |
| Carrying capacity: | Top box |
| Color options: | Blue |
| Comments: | LML is an abbreviation of Lohia Machines Limited in India. Windscreen. |
