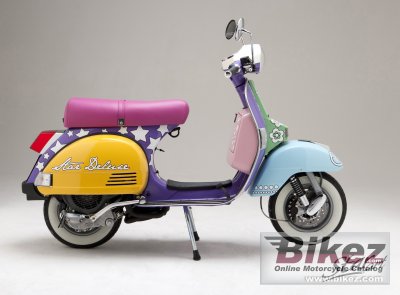

| LML's profilation of this bike |
| Star 4S Classic is pure beauty, to drive all day without ever stopping. Retro style and advanced technology, combined with the manual gearbox, exciting colors, re-designed seats and the new instrument panel make this scooter a true timeless classics. |
| General information |
|---|
| Model: | LML Star 4S 125 Classic | | Year: | 2012 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 124.88 ccm (7.62 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 7.83 HP (5.7 kW)) @ 6000 RPM | | Torque: | 9.15 Nm (0.9 kgf-m or 6.7 ft.lbs) @ 5000 RPM | | Bore x stroke: | 52.4 x 57.8 mm (2.1 x 2.3 inches) | | Valves per cylinder: | 2 | | Fuel system: | Carburettor. Keihin PB 18 | | Fuel control: | SOHC | | Ignition: | CDI | | Cooling system: | Air | | Gearbox: | 4-speed | Transmission type,
final drive: | Belt | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Mixed structure with chassis and tubes in steel. | | Front suspension: | Swing-arm, helical spring an hydraulic dampers double effect | | Rear suspension: | Engine as swing arm, helical spring an hydraulic dampers double effect | | Front tyre dimensions: | 3.50-10 | | Rear tyre dimensions: | 3.50-10 | | Front brakes: | Single disc | | Front brakes diameter: | 200 mm (7.9 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 150 mm (5.9 inches) | | Wheels: | Modular pressed steel | | Physical measures and capacities |
|---|
| Dry weight: | 121.0 kg (266.8 pounds) | | Power/weight ratio: | 0.0647 HP/kg | | Overall height: | 1,110 mm (43.7 inches) | | Overall length: | 1,760 mm (69.3 inches) | | Overall width: | 695 mm (27.4 inches) | | Wheelbase: | 1,235 mm (48.6 inches) | | Fuel capacity: | 5.50 litres (1.45 gallons) | | Reserve fuel capacity: | 1.00 litres (0.26 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Comments: | LML is an abbreviation of Lohia Machines Limited in India. Sold in Europe. | | Further information |
|---|
