| General moped information |
|---|

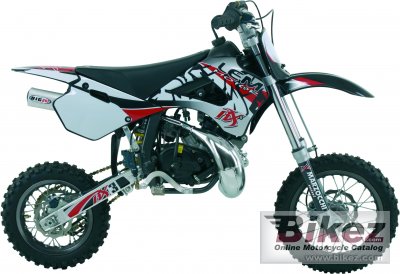

| Model: | Lem RX3 Racing | | Year: | 2011 | | Category: | Minibike, cross | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 49.80 ccm (3.04 cubic inches) | | Engine type: | Single cylinder, two-stroke | | Engine details: | Morini S6-C engine. Aluminium cylinder. 4 petal carbon fibre reed valves. | | Power: | 12.80 HP (9.3 kW)) @ 13500 RPM | | Bore x stroke: | 39.1 x 41.7 mm (1.5 x 1.6 inches) | | Fuel system: | Carburettor. Dell´Orto PHBG 19 BS | | Ignition: | CDI | | Lubrication system: | 3% mixture | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Chain | | Clutch: | Centrifugal wet clutch | | Driveline: | CVT | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel tube, aluminium swing arm | | Front suspension: | Hydraulic fork | | Front suspension travel: | 185 mm (7.3 inches) | | Rear suspension: | Hydraulic monoshock | | Rear suspension travel: | 48 mm (1.9 inches) | | Front tyre dimensions: | 2.50-12 | | Rear tyre dimensions: | 2.75-10 | | Front brakes: | Single disc | | Front brakes diameter: | 220 mm (8.7 inches) | | Rear brakes: | Single disc | | Wheels: | Aluminium rims | | Physical measures and capacities |
|---|
| Dry weight: | 42.0 kg (92.6 pounds) | | Power/weight ratio: | 0.3048 HP/kg | | Seat height: | 675 mm (26.6 inches) If adjustable, lowest setting. | | Overall length: | 1,360 mm (53.5 inches) | | Ground clearance: | 270 mm (10.6 inches) | | Wheelbase: | 985 mm (38.8 inches) | | Fuel capacity: | 2.01 litres (0.53 gallons) | | Other specifications |
|---|
| Comments: | Italian brand. | | Further information |
|---|
