| General moped information |
|---|

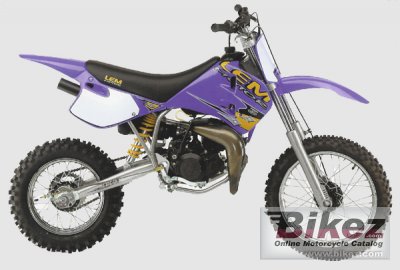

| Model: | Lem R3 |
| Year: | 2006 |
| Category: | Minibike, cross |
| Rating: | 61.6 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 49.80 ccm (3.04 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Power: | 12.80 HP (9.3 kW)) |
| Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor. Dell´Orto PHBG 14MS |
| Starter: | Kick |
| Lubrication system: | Premix |
| Cooling system: | Liquid |
| Gearbox: | 1-speed |
Transmission type
final drive: | Chain |
| Clutch: | Centrifugal automatic |
| Physical measures |
|---|
| Dry weight: | 42.0 kg (92.6 pounds) |
| Seat height: | 610 mm (24.0 inches) If adjustable, lowest setting. |
| Ground clearance: | 279 mm (11.0 inches) |
| Wheelbase: | 914 mm (36.0 inches) |
| Chassis and dimensions |
|---|
| Frame type: | ChroMoly oval perimeter frame |
| Front suspension: | Marzocchi dual hydraulic with aluminum triple clamp |
| Rear suspension: | Paioli SX remote hydraulic monoshock with adjustable comp/rebound |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Exhaust system: | Works style racing exhaust w/ rebuildable alloy oval silencer |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.3048 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 3.00 litres (0.79 gallons) |
| Comments: | Intended for kids, but racing series. |
