| General moped information |
|---|

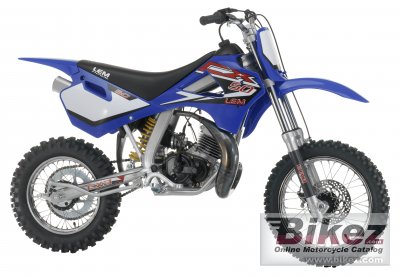

| Model: | Lem CX3 | | Year: | 2006 | | Category: | Minibike, cross | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 49.80 ccm (3.04 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 2 | | Power: | 3.20 HP (2.3 kW)) | | Torque: | 1.60 Nm (0.2 kgf-m or 1.2 ft.lbs) | | Bore x stroke: | 39.1 x 41.7 mm (1.5 x 1.6 inches) | | Starter: | Kick | | Lubrication system: | 3% mixture | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type
final drive: | Chain | | Clutch: | Centrifugal | | Physical measures |
|---|
| Dry weight: | 45.4 kg (100.0 pounds) | | Seat height: | 729 mm (28.7 inches) If adjustable, lowest setting. | | Overall length: | 1,575 mm (62.0 inches) | | Ground clearance: | 249 mm (9.8 inches) | | Wheelbase: | 1,080 mm (42.5 inches) | | Chassis and dimensions |
|---|
| Frame type: | Oval steel tube | | Front tyre dimensions: | 2.50-14 | | Rear tyre dimensions: | 3.00-12 | | Front brakes: | Single disc | | Front brakes diameter: | 180 mm (7.1 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 90 mm (3.5 inches) | | Speed and acceleration |
|---|
| Power/weight ratio: | 0.0706 HP/kg | | Other specifications |
|---|
| Fuel capacity: | 2.49 litres (0.66 gallons) | | Comments: | Morini S6-E engine. | | Further information |
|---|
