| General moped information |
|---|

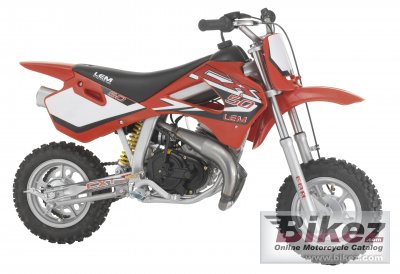

| Model: | Lem CX1 |
| Year: | 2006 |
| Category: | Minibike, cross |
| Rating: | 54.6 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 49.80 ccm (3.04 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Power: | 2.00 HP (1.5 kW)) |
| Torque: | 1.60 Nm (0.2 kgf-m or 1.2 ft.lbs) |
| Fuel system: | Carburettor. Dell’Orto SHA 14/12 |
| Lubrication system: | 3% oil mixture |
| Cooling system: | Air |
| Gearbox: | 1-speed |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 32.0 kg (70.5 pounds) |
| Seat height: | 540 mm (21.3 inches) If adjustable, lowest setting. |
| Ground clearance: | 165 mm (6.5 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Oval steel tube |
| Front tyre dimensions: | 2.50-8 |
| Rear tyre dimensions: | 2.50-8 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.0625 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 2.00 litres (0.53 gallons) |
