10 Lehman Trikes Monarch II Gold Wing specificationsLehman Trikes Monarch II Gold Wing 2010

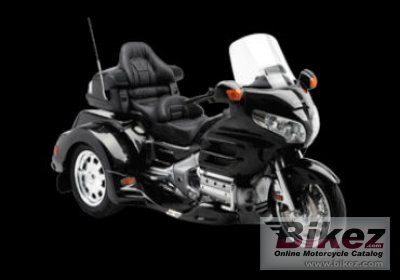

2010 Lehman Trikes Monarch II Gold Wing photo
Picture credits - Lehman Trikes. Click to submit more pictures.
2010 Lehman Trikes Monarch II Gold Wing

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Lehman Trikes' profilation of this bike
The Monarch II features a vertical lift trunk door, isolastic cushion ride suspension and dual piston linked braking system. The Monarch II is the perfect balance between performance handling and a luxury ride.

General information
Model:Lehman Trikes Monarch II Gold Wing
Year:2010
Category:Touring
Rating:Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Engine and transmission
Displacement:1832.00 ccm (111.79 cubic inches)
Engine type:Six cylinder boxer, four-stroke
Bore x stroke:74.0 x 71.0 mm (2.9 x 2.8 inches)
Valves per cylinder:2
Fuel system:Injection. Programmed Fuel Injection (PGM-FI)
Fuel control:SOHC
Ignition:Computer-controlled digital with three-dimensional mapping
Cooling system:Liquid
Gearbox:5-speed
Transmission type,
final drive:
Shaft drive (cardan)
Chassis, suspension, brakes and wheels
Rake (fork angle):29.2
Trail:109 mm (4.3 inches)
Front suspension:45mm cartridge fork with anti-dive system, 5.5-inch travel
Rear suspension:Pro-Arm single-side swingarm with Pro-Link single shock with computer-controlled spring-preload adjustment with two memory presets
Rear suspension travel:104 mm (4.1 inches)
Front tyre dimensions:130/70-R18
Rear tyre dimensions:180/60-R16
Front brakes:Double disc
Front brakes diameter:296 mm (11.7 inches)
Rear brakes:Single disc
Rear brakes diameter:316 mm (12.4 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:521.0 kg (1,148.6 pounds)
Seat height:739 mm (29.1 inches) If adjustable, lowest setting.
Overall length:2,845 mm (112.0 inches)
Overall width:1,372 mm (54.0 inches)
Wheelbase:1,824 mm (71.8 inches)
Fuel capacity:24.98 litres (6.60 gallons)
Other specifications
Starter:Electric
Comments:Three wheels. Modified Honda GL1800 Gold Wing. Trunk Volume: 4.5 cu.ft. (127 L).
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 10 Lehman Trikes Monarch II Gold Wing discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Lehman Trikes Monarch II Gold Wing discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.
