| General information |
|---|

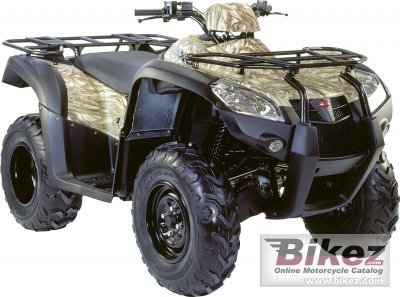

| Model: | Kymco MXU 500 | | Year: | 2010 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 498.50 ccm (30.42 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 18.00 HP (13.1 kW)) @ 5500 RPM | | Compression: | 10.5:1 | | Bore x stroke: | 92.0 x 75.0 mm (3.6 x 3.0 inches) | | Ignition: | CDI | | Cooling system: | Liquid | Transmission type,
final drive: | Belt | | Chassis, suspension, brakes and wheels |
|---|
| Front tyre dimensions: | 25/8-12 | | Rear tyre dimensions: | 25/10-12 | | Front brakes: | Single disc | | Front brakes diameter: | 190 mm (7.5 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 220 mm (8.7 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 306.0 kg (674.6 pounds) | | Power/weight ratio: | 0.0588 HP/kg | | Seat height: | 848 mm (33.4 inches) If adjustable, lowest setting. | | Overall length: | 2,230 mm (87.8 inches) | | Overall width: | 1,223 mm (48.1 inches) | | Wheelbase: | 1,293 mm (50.9 inches) | | Fuel capacity: | 17.00 litres (4.49 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Yellow, red, blue, black, green | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 10 Kymco MXU 500 discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
