| General moped information |
|---|

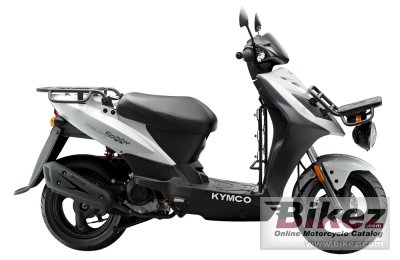

| Model: | Kymco Agility Carry |
| Year: | 2012 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 2.60 HP (1.9 kW)) @ 7500 RPM |
| Torque: | 3.43 Nm (0.3 kgf-m or 2.5 ft.lbs) @ 7000 RPM |
| Compression: | 11.0:1 |
| Bore x stroke: | 39.0 x 41.4 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Driveline: | CVT automatic |
| Fuel consumption: | 2.70 litres/100 km (37.0 km/l or 87.12 mpg) |
| Greenhouse gases: | 62.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel |
| Front suspension: | Telescopic fork |
| Rear suspension: | Single shock |
| Front tyre dimensions: | 120/70-12 |
| Rear tyre dimensions: | 130/70-12 |
| Front brakes: | Single disc |
| Front brakes diameter: | 220 mm (8.7 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 110 mm (4.3 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 105.5 kg (232.6 pounds) |
| Power/weight ratio: | 0.0246 HP/kg |
| Seat height: | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height: | 1,130 mm (44.5 inches) |
| Overall length: | 1,925 mm (75.8 inches) |
| Overall width: | 685 mm (27.0 inches) |
| Ground clearance: | 140 mm (5.5 inches) |
| Wheelbase: | 1,350 mm (53.1 inches) |
| Fuel capacity: | 5.00 litres (1.32 gallons) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Carrying capacity: | Large front and rear rack |
| Factory warranty: | Two Year Limited Factory Warranty |
| Color options: | Orange, blue, green, white |
| Comments: | Kymco is made by Kwang Yang Motor Company, Taiwan. |
