| General moped information |
|---|

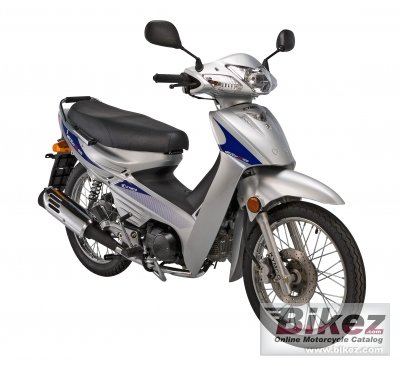

| Model: | Kymco Active SR |
| Year: | 2008 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 3.08 HP (2.2 kW)) @ 8000 RPM |
| Torque: | 3.20 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 4000 RPM |
| Compression: | 8.0:1 |
| Bore x stroke: | 39.0 x 41.0 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor |
| Ignition: | CDI |
| Starter: | Electric & kick |
| Cooling system: | Air |
| Gearbox: | 4-speed |
| Physical measures |
|---|
| Dry weight: | 94.0 kg (207.2 pounds) |
| Overall length: | 1,995 mm (78.5 inches) |
| Wheelbase: | 1,275 mm (50.2 inches) |
| Chassis and dimensions |
|---|
| Front tyre dimensions: | 2.50-17 |
| Rear tyre dimensions: | 2.75-17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 220 mm (8.7 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 110 mm (4.3 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.0328 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 3.50 litres (0.92 gallons) |
| Comments: | Kymco is an abbreviation of Kwang Yang Motor Company in Taiwan. |
