12 KTM Freeride 350 specificationsKTM Freeride 350 2012

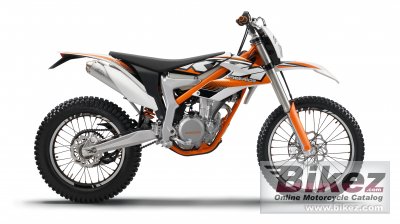

2012 KTM Freeride 350 photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2012 KTM Freeride 350 imageShow more 2012 KTM Freeride 350 images
2012 KTM Freeride 350

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
With a new engine, fuel injection system and smaller displacement, new bodywork, new chassis - in fact, a whole new concept. What with the first Grand Prix victory and racing to the top of the overall standings in the MX1 class after only two races, maybe even the beginning of a new era in motocross ...

General information
Model:KTM Freeride 350
Year:2012
Category:Enduro / offroad
Rating:73.9 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:349.70 ccm (21.34 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:13.5:1
Bore x stroke:88.0 x 57.5 mm (3.5 x 2.3 inches)
Ignition:Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication system:Forced oil lubrication with 2 Eaton pumps
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet multi-disc clutch / hydraulically operated
Driveline:14:50. Primary gear ratio 24:73.
Chassis, suspension, brakes and wheels
Frame type:Perimeter steel-aluminium composite frame
Rake (fork angle):23.0°
Front suspension:WP USD 48 mm (1.89 in)
Front suspension travel:250 mm (9.8 inches)
Rear suspension:WP Suspension 4618 PDS DCC
Rear suspension travel:260 mm (10.2 inches)
Front tyre dimensions:80/100-21
Rear tyre dimensions:110/90-19
Front brakes:Single disc
Front brakes diameter:240 mm (9.4 inches)
Rear brakes:Single disc
Rear brakes diameter:210 mm (8.3 inches)
Physical measures and capacities
Dry weight:99.5 kg (219.4 pounds)
Seat height:895 mm (35.2 inches) If adjustable, lowest setting.
Ground clearance:325 mm (12.8 inches)
Wheelbase:1,418 mm (55.8 inches)
Fuel capacity:7.50 litres (1.98 gallons)
Other specifications
Starter:Electric
Color options:Orange/white
