12 KTM 990 Supermoto R specificationsKTM 990 Supermoto R 2012

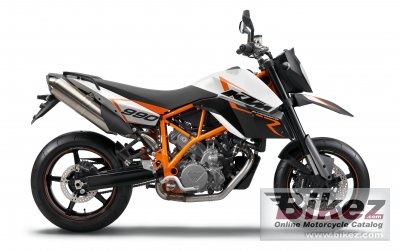

2012 KTM 990 Supermoto R photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2012 KTM 990 Supermoto R imageShow more 2012 KTM 990 Supermoto R images
2012 KTM 990 Supermoto R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
A state-of-the-art V2 engine with electronic injection and impressive punch, a perfectly balanced chassis, a whole bunch of high-quality components - the 990 SM R is the most radical twin-cylinder Supermoto on the market - and, in its latest form, it is still just as dynamic, but much more economical and safer too, thanks to superb Bosch 9M+ and #8209;ABS.

General information
Model:KTM 990 Supermoto R
Year:2012
Category:Super motard
Rating:55.8 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:999.00 ccm (60.96 cubic inches)
Engine type:V3, two-stroke
Engine details:75 V arrangement
Power:114.00 HP (83.2 kW)) @ 4000 RPM
Torque:97.00 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 7000 RPM
Compression:11.5:1
Bore x stroke:101.0 x 62.4 mm (4.0 x 2.5 inches)
Fuel system:Injection. Keihin EFI
Ignition:Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication system:Dry-sump lubrication with 2 rotor pumps
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet multi-disc clutch / hydraulically operated
Driveline:17:41. Primary drive: 35:67.
Chassis, suspension, brakes and wheels
Frame type:Tubular space frame made from chrome molybdenum steel, powder-coated
Rake (fork angle):24.4
Trail:109 mm (4.3 inches)
Front suspension:WP Suspension Up Side Down 4860 ROMA PA
Front suspension travel:160 mm (6.3 inches)
Rear suspension:WP Suspension 4618 BAVP DCC
Rear suspension travel:180 mm (7.1 inches)
Front tyre dimensions:120/70-17
Rear tyre dimensions:180/55-ZR17
Front brakes:Double disc. ABS. Brembo four piston fixed-caliper, radial bolted, brake.
Front brakes diameter:305 mm (12.0 inches)
Rear brakes:Single disc. ABS. two-piston brake caliper; fixed brake disc
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Dry weight:192.0 kg (423.3 pounds)
Power/weight ratio:0.5938 HP/kg
Seat height:875 mm (34.4 inches) If adjustable, lowest setting.
Ground clearance:195 mm (7.7 inches)
Wheelbase:1,505 mm (59.3 inches)
Fuel capacity:15.00 litres (3.96 gallons)
Other specifications
Starter:Electric
Color options:Black/orange/white
Comments:Also called KTM 990 SM R.
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 12 KTM 990 Supermoto R discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Free motorcycle classifieds

Click here to sell a used 2012 KTM 990 Supermoto R or advertise any other MC for sale. You can list all available KTM 990 Supermoto R bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world.

You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.


Rating sample for this KTM bike
Design and look for the 2012 KTM 990 Supermoto R:


(65.2 out of 100)

Click here for complete rating. You can also compare bikes.
