| KTM's profilation of this bike |

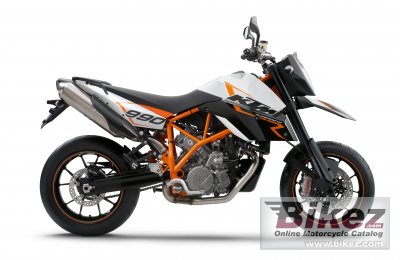

| Designed to push the limits further and further on the race track, the KTM 990 SM R is the most radical two-cylinder supermoto on the market. It is all the more surprising that town and city riding is at least as much fun as negotiating twisting roads on mountain passes. |
| General information |
|---|
| Model: | KTM 990 Supermoto R | | Year: | 2011 | | Category: | Super motard | | Rating: | 75.1 out of 100. Show full rating and compare with other bikes | | Engine and transmission |
|---|
| Displacement: | 999.00 ccm (60.96 cubic inches) | | Engine type: | V2, four-stroke | | Power: | 113.99 HP (83.2 kW)) @ 9000 RPM | | Torque: | 97.00 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 7000 RPM | | Compression: | 11.5:1 | | Bore x stroke: | 101.0 x 62.4 mm (4.0 x 2.5 inches) | | Fuel system: | Injection. Keihin EFI | | Fuel control: | DOHC | | Lubrication system: | Pressure lubrication with 2 oil pumps | | Cooling system: | Liquid | | Gearbox: | 6-speed | Transmission type,
final drive: | Chain | | Clutch: | Wet mDouble disk clutch, hydraulically operated | | Driveline: | 17:41. Primary drive: 35:67. | | Exhaust system: | Twin stainless-steel silencer with catalytic converters | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Chromium-Molybdenum trellis frame, powder-coated. Subframe: Aluminium. | | Rake (fork angle): | 24.4° | | Trail: | 109 mm (4.3 inches) | | Front suspension: | WP USD 48 mm (1.89 in) | | Front suspension travel: | 210 mm (8.3 inches) | | Rear suspension: | WP mono shock | | Rear suspension travel: | 210 mm (8.3 inches) | | Front tyre dimensions: | 120/70-17 | | Rear tyre dimensions: | 180/55-ZR17 | | Front brakes: | Double disc. Brembo four piston fixed-caliper, radial bolted, brake | | Front brakes diameter: | 305 mm (12.0 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 240 mm (9.4 inches) | | Wheels: | Forged aluminium wheels 3.5 x 17´´; 5.5 x 17´´ | | Physical measures and capacities |
|---|
| Dry weight: | 189.0 kg (416.7 pounds) | | Power/weight ratio: | 0.6031 HP/kg | | Seat height: | 875 mm (34.4 inches) If adjustable, lowest setting. | | Ground clearance: | 195 mm (7.7 inches) | | Wheelbase: | 1,510 mm (59.4 inches) | | Fuel capacity: | 15.00 litres (3.96 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Black/orange/white | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 11 KTM 990 Supermoto R discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
