| General information |
|---|

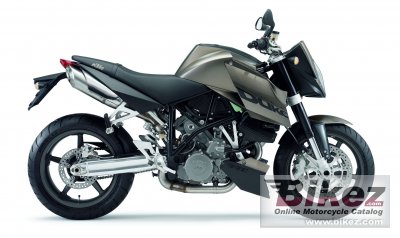

| Model: | KTM 990 Super DukeTitanium |
| Year: | 2006 |
| Category: | Naked bike |
| Rating: | 76.2 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 999.00 ccm (60.96 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 118.00 HP (86.1 kW)) @ 9000 RPM |
| Torque: | 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 7000 RPM |
| Compression: | 11.5:1 |
| Bore x stroke: | 100.0 x 72.0 mm (3.9 x 2.8 inches) |
| Fuel system: | Carburettor |
| Fuel control: | DOHC |
| Ignition: | Kokusan DC-CDI |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multi-disc clutch, operated hydraulically |
| Exhaust system: | Stainless steel with controlled catalytic converter |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Chromium-molybdenum, powder-coated |
| Rake (fork angle): | 23.5° |
| Trail: | 103 mm (4.1 inches) |
| Front suspension: | WP-USD |
| Front suspension travel: | 300 mm (11.8 inches) |
| Rear suspension: | WP - Monoshock |
| Rear suspension travel: | 335 mm (13.2 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-17 |
| Front brakes: | Double disc |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 184.0 kg (405.7 pounds) |
| Power/weight ratio: | 0.6413 HP/kg |
| Seat height: | 855 mm (33.7 inches) If adjustable, lowest setting. |
| Ground clearance: | 165 mm (6.5 inches) |
| Wheelbase: | 1,438 mm (56.6 inches) |
| Fuel capacity: | 15.00 litres (3.96 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Titanium grey |
| Comments: | Not available in the US. |
