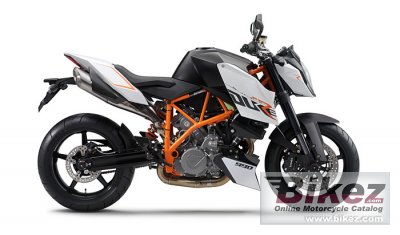

General information Model: KTM 990 Super Duke R Year: 2009 Category: Naked bike Rating: 64.5 out of 100. Show full rating and compare with other bikes Engine and transmission Displacement: 999.00 ccm (60.96 cubic inches) Engine type: V2, four-stroke Power: 130.07 HP (94.9 kW)) @ 9000 RPM Torque: 102.00 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 7000 RPM Compression: 11.5:1 Bore x stroke: 101.0 x 62.4 mm (4.0 x 2.5 inches) Valves per cylinder: 4 Fuel system: Injection. Keihin Fuel control: DOHC Lubrication system: Pressure lubrication Cooling system: Liquid Gearbox: 6-speed Transmission type, final drive: Chain Clutch: Wet multi-disc clutch, operated hydraulically Exhaust system: Stainless steel silencer with regulated catalytic converter Chassis, suspension, brakes and wheels Frame type: Chromium-Molybdenum trellis frame, powder coated. Aluminium 7020 subframe. Rake (fork angle): 22.7° Front suspension: WP USD Front suspension travel: 135 mm (5.3 inches) Rear suspension: WP monoshock Rear suspension travel: 160 mm (6.3 inches) Front tyre dimensions: 120/70-ZR17 Rear tyre dimensions: 180/55-ZR17 Front brakes: Double disc. 2 x Brembo four piston, radially bolted caliper Front brakes diameter: 320 mm (12.6 inches) Rear brakes: Single disc. Brembo single-piston floating caliper Rear brakes diameter: 240 mm (9.4 inches) Physical measures and capacities Dry weight: 186.0 kg (410.1 pounds) Power/weight ratio: 0.6993 HP/kg Seat height: 855 mm (33.7 inches) If adjustable, lowest setting. Ground clearance: 150 mm (5.9 inches) Wheelbase: 1,450 mm (57.1 inches) Fuel capacity: 18.50 litres (4.89 gallons) Reserve fuel capacity: 2.50 litres (0.66 gallons) Other specifications Starter: Electric Color options: Orange/gray/white Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questions Join the 09 KTM 990 Super Duke R discussion group.
Insurance, loans, tests
Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes List related bikes for comparison of specs
Rating sample for this KTM bike
Engine performance for the 2009 KTM 990 Super Duke R: (84.5 out of 100) You can also compare bikes.
