06 KTM 950 Supermoto Orange specificationsKTM 950 Supermoto Orange 2006

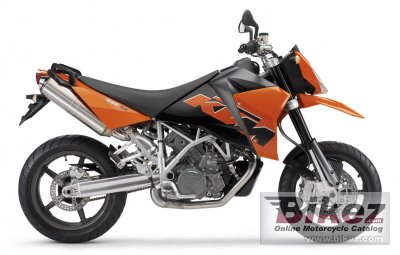

2006 KTM 950 Supermoto Orange photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2006 KTM 950 Supermoto Orange imageShow more 2006 KTM 950 Supermoto Orange images
2006 KTM 950 Supermoto Orange

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
1 review available
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
Make a big impression. Plain black or black and orange, its all the same. With its self confident, bull-like appearance, the

General information
Model:KTM 950 Supermoto Orange
Year:2006
Category:Super motard
Rating:75.8 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:942.00 ccm (57.48 cubic inches)
Engine type:Single cylinder, four-stroke
Power:96.55 HP (70.5 kW)) @ 8000 RPM
Torque:94.00 Nm (9.6 kgf-m or 69.3 ft.lbs) @ 6500 RPM
Compression:11.5:1
Bore x stroke:100.0 x 72.0 mm (3.9 x 2.8 inches)
Fuel control:DOHC
Ignition:Denso battery ignition
Lubrication system:Pressure lubrication
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet multi-disc clutch, operated hydraulically
Exhaust system:Twin stainless steel with catalytic converter
Chassis, suspension, brakes and wheels
Frame type:Tubular space frame, chromium-molybdenum, powder-coated
Rake (fork angle):25.4
Trail:110 mm (4.3 inches)
Front suspension:WP-USD 48 mm (1.89 inches)
Front suspension travel:300 mm (11.8 inches)
Rear suspension:WP-Monoshock
Rear suspension travel:335 mm (13.2 inches)
Front tyre dimensions:120/70-ZR17
Rear tyre dimensions:180/55-17
Front brakes:Double disc
Rear brakes:Single disc
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Dry weight:191.0 kg (421.1 pounds)
Power/weight ratio:0.5055 HP/kg
Seat height:865 mm (34.1 inches) If adjustable, lowest setting.
Overall width:950 mm (37.4 inches)
Ground clearance:190 mm (7.5 inches)
Wheelbase:1,510 mm (59.4 inches)
Fuel capacity:17.50 litres (4.62 gallons)
Other specifications
Starter:Electric
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 06 KTM 950 Supermoto Orange discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Sell or buy used bikes?

Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2006 KTM 950 Supermoto Orange or advertise any other MC for sale. You can list all 2006 KTM 950 Supermoto Orange available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes.

Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.


Rating sample for this KTM bike
Offroad capabilities for the 2006 KTM 950 Supermoto Orange:


(61.0 out of 100)

Click here for complete rating. You can also compare bikes.
