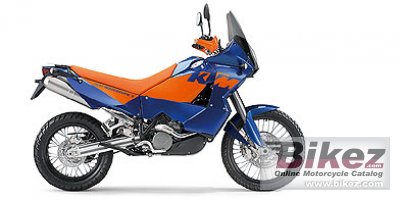

KTM's profilation of this bike Due to its longer suspension travel and therefore a 35 mm higher seat, the KTM 950 Adventure S is somewhat sportier than its sister, the KTM 950 Adventure. Its direct derivation from the rally sport and the use of high quality components make it a reliable partner which has proven its qualities on any number of rallies.
General information Model: KTM 950 Adventure S Year: 2006 Category: Enduro / offroad Rating: 69 out of 100. Show full rating and compare with other bikes Engine and transmission Displacement: 942.00 ccm (57.48 cubic inches) Engine type: Twin, four-stroke Power: 96.55 HP (70.5 kW)) @ 8000 RPM Torque: 95.00 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 6000 RPM Compression: 11.5:1 Bore x stroke: 101.0 x 78.0 mm (4.0 x 3.1 inches) Fuel system: Carburettor. Mikuni BST 40 Fuel control: DOHC Ignition: Denso battery ignition Lubrication system: Pressure lubrication Cooling system: Liquid Gearbox: 6-speed Transmission type, final drive: Chain Clutch: Wet multi-disc clutch, operated hydraulically Exhaust system: 2 x premium steel Chassis, suspension, brakes and wheels Frame type: Tubular chromoly space frame, powder-coated Rake (fork angle): 26.6° Trail: 119 mm (4.7 inches) Front suspension: WP-USD 48 mm (1.89 inches) Front suspension travel: 300 mm (11.8 inches) Rear suspension: WP-PDS suspension strut with hydr. spring preload Rear suspension travel: 335 mm (13.2 inches) Front tyre dimensions: 90/90-21 Rear tyre dimensions: 150/70-18 Front brakes: Double disc Front brakes diameter: 300 mm (11.8 inches) Rear brakes: Single disc Rear brakes diameter: 240 mm (9.4 inches) Physical measures and capacities Dry weight: 198.0 kg (436.5 pounds) Power/weight ratio: 0.4876 HP/kg Seat height: 860 mm (33.9 inches) If adjustable, lowest setting. Overall width: 950 mm (37.4 inches) Ground clearance: 261 mm (10.3 inches) Wheelbase: 1,570 mm (61.8 inches) Fuel capacity: 22.00 litres (5.81 gallons) Other specifications Starter: Electric Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questions Join the 06 KTM 950 Adventure S discussion group.
Insurance, loans, tests
Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes List related bikes for comparison of specs
Rating sample for this KTM bike
Offroad capabilities for the 2006 KTM 950 Adventure S: (75.9 out of 100) You can also compare bikes.
