| General information |
|---|

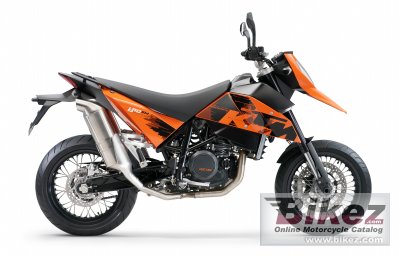

| Model: | KTM 690 Supermoto |
| Year: | 2009 |
| Category: | Super motard |
| Rating: | 72.2 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 653.70 ccm (39.89 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 63.02 HP (46.0 kW)) @ 7500 RPM |
| Torque: | 65.00 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 6500 RPM |
| Compression: | 11.7:1 |
| Bore x stroke: | 102.0 x 80.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. Keihin MX FCR 41 |
| Fuel control: | OHC |
| Ignition: | Kokusan |
| Lubrication system: | Pressure lubrication with 2 oil pumps |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | APTC multi-disc wet clutch, hydraulically operated |
| Exhaust system: | INOX double silencer with regulated catalytic converters |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Chromium-Molybdenum trellis frame, powder coated. Aluminium 7020 subframe. |
| Rake (fork angle): | 26.0° |
| Trail: | 112 mm (4.4 inches) |
| Front suspension: | WP USD, 48 mm |
| Front suspension travel: | 280 mm (11.0 inches) |
| Rear suspension: | WP mono shock with Pro Lever Linkage |
| Rear suspension travel: | 310 mm (12.2 inches) |
| Front tyre dimensions: | 120/70-17 |
| Rear tyre dimensions: | 160/60-17 |
| Front brakes: | Single disc. Brembo four piston, radially bolted caliper |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Brembo single piston, floating caliper |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 154.0 kg (339.5 pounds) |
| Power/weight ratio: | 0.4092 HP/kg |
| Seat height: | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Ground clearance: | 245 mm (9.6 inches) |
| Wheelbase: | 1,472 mm (58.0 inches) |
| Fuel capacity: | 13.20 litres (3.49 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Orange |
