11 KTM 690 Enduro R specificationsKTM 690 Enduro R 2011

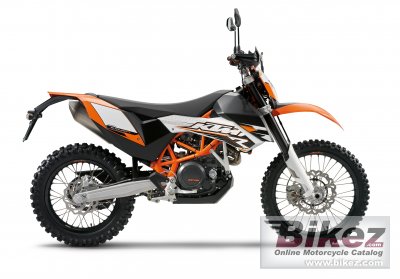

2011 KTM 690 Enduro R photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2011 KTM 690 Enduro R image
2011 KTM 690 Enduro R

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
If you talk about hard Enduro, you really mean LC4. KTM has always made its mark on this category with its LC4 models. A low weight, maximum performance, robust off-road technology and the highest reliability then and now!

General information
Model:KTM 690 Enduro R
Year:2011
Category:Enduro / offroad
Rating:75.4 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:654.00 ccm (39.91 cubic inches)
Engine type:Single cylinder, four-stroke
Power:62.09 HP (45.3 kW)) @ 7500 RPM
Torque:64.00 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 6000 RPM
Compression:11.8:1
Bore x stroke:102.0 x 80.0 mm (4.0 x 3.1 inches)
Fuel control:OHC
Lubrication system:Pressure lubrication with 2 Eaton pumps
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:APTC slipper clutch, hydraulically operated
Driveline:15:45. Primary drive: 36:79.
Exhaust system:Stainless steel silencer with regulated catalytic converter
Chassis, suspension, brakes and wheels
Frame type:Chromium-Molybdenum trellis frame, powder coated. Subframe: Self-supporting plastic tank.
Rake (fork angle):27.0
Trail:115 mm (4.5 inches)
Front suspension:WP USD 48 mm (1.89 in)
Front suspension travel:250 mm (9.8 inches)
Rear suspension:WP mono shock with Pro Lever Linkage
Rear suspension travel:250 mm (9.8 inches)
Front tyre dimensions:90/90-21
Rear tyre dimensions:140/80-18
Front brakes:Single disc
Front brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc
Rear brakes diameter:240 mm (9.4 inches)
Wheels:1.85 x 21 / 2.50 x 18
Physical measures and capacities
Dry weight:138.5 kg (305.3 pounds)
Power/weight ratio:0.4483 HP/kg
Seat height:930 mm (36.6 inches) If adjustable, lowest setting.
Ground clearance:300 mm (11.8 inches)
Wheelbase:1,498 mm (59.0 inches)
Fuel capacity:12.00 litres (3.17 gallons)
Other specifications
Starter:Electric
