10 KTM 690 Duke specificationsKTM 690 Duke 2010

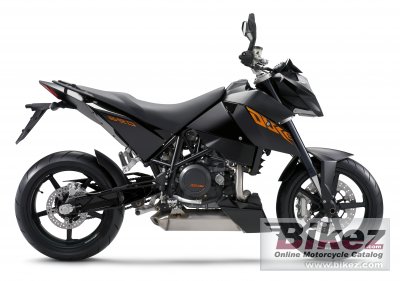

2010 KTM 690 Duke photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2010 KTM 690 Duke imageShow more 2010 KTM 690 Duke images
2010 KTM 690 Duke

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
Performance values. If superathletes feared the Duke then, now its practically unbeatable. To ride the Duke you need skill, courage and of course: style!

General information
Model:KTM 690 Duke
Year:2010
Category:Naked bike
Rating:78.2 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:654.00 ccm (39.91 cubic inches)
Engine type:Single cylinder, four-stroke
Power:64.36 HP (47.0 kW)) @ 7500 RPM
Torque:67.00 Nm (6.8 kgf-m or 49.4 ft.lbs) @ 5500 RPM
Compression:11.8:1
Bore x stroke:102.0 x 80.0 mm (4.0 x 3.1 inches)
Valves per cylinder:4
Fuel system:Injection. Keihin EFI with EPT (Electr. Power Throttle)
Fuel control:OHC
Lubrication system:Pressure lubrication with 2 Eaton pumps
Cooling system:Liquid
Gearbox:6-speed
Clutch:APTC slipper clutch, hydraulically operated
Exhaust system:Stainless steel underfloor silencer with integrated catalytic converter
Chassis, suspension, brakes and wheels
Frame type:Chromium-Molybdenum trellis frame, powder coated
Rake (fork angle):26.5
Trail:115 mm (4.5 inches)
Front suspension:WP USD fork
Front suspension travel:140 mm (5.5 inches)
Rear suspension:WP mono shock with Pro-Lever linkage
Rear suspension travel:140 mm (5.5 inches)
Front tyre dimensions:120/70-17
Rear tyre dimensions:160/60-17
Front brakes:Single disc
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Dry weight:148.5 kg (327.4 pounds)
Power/weight ratio:0.4334 HP/kg
Seat height:865 mm (34.1 inches) If adjustable, lowest setting.
Ground clearance:155 mm (6.1 inches)
Wheelbase:1,472 mm (58.0 inches)
Fuel capacity:13.50 litres (3.57 gallons)
Other specifications
Color options:Black/orange
