| General moped information |
|---|

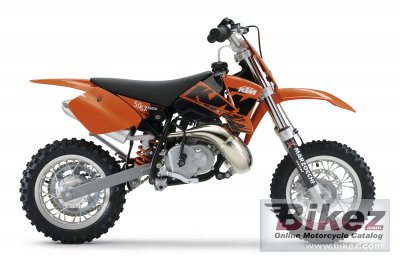

| Model: | KTM 50 SX Junior |
| Year: | 2007 |
| Category: | Minibike, cross |
| Rating: | 66 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Bore x stroke: | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system: | Carburettor. DellīOrto PHVA 14 DS |
| Ignition: | Seletra analogue |
| Starter: | Kick |
| Lubrication system: | Mixture 1:60 |
| Cooling system: | Liquid |
Transmission type
final drive: | Chain |
| Clutch: | Centrifugal clutch (adjustable) |
| Physical measures |
|---|
| Dry weight: | 37.6 kg (82.9 pounds) |
| Seat height: | 585 mm (23.0 inches) If adjustable, lowest setting. |
| Ground clearance: | 220 mm (8.7 inches) |
| Wheelbase: | 910 mm (35.8 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Central double-cradle-type frame |
| Rake (fork angle): | 24.0° |
| Front suspension: | Marzocchi, 32 mm (1.26 |
| Front suspension travel: | 115 mm (4.5 inches) |
| Rear suspension: | WP monoshock |
| Rear suspension travel: | 185 mm (7.3 inches) |
| Front brakes: | Single disc |
| Front brakes diameter: | 160 mm (6.3 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 90 mm (3.5 inches) |
| Exhaust system: | Aluminium |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 1.80 litres (0.48 gallons) |
