10 KTM 50 SX specificationsKTM 50 SX 2010

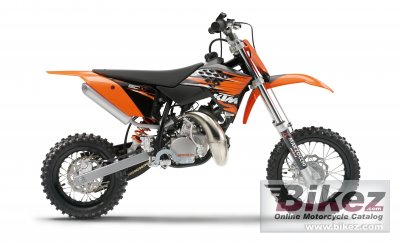

2010 KTM 50 SX photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2010 KTM 50 SX image
2010 KTM 50 SX

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds

Tip a friend
List related bikes



KTM's profilation of this bike
The 50 SX is the ultimate weapon for budding professional motocross racers. Its cutting-edge two-stroke technology provides unsurpassed power. The bike is easy to control with an automatic clutch for accelerating with ease.

General moped information
Model:KTM 50 SX
Year:2010
Category:Minibike, cross
Rating:63.5 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:49.00 ccm (2.99 cubic inches)
Engine type:Single cylinder, two-stroke
Compression:12.5:1
Bore x stroke:39.5 x 40.0 mm (1.6 x 1.6 inches)
Fuel system:Carburettor. Dell´Orto PHBG 19 BS
Ignition:Seletra 2p D36
Lubrication system:Mixture oil lubrication 1:60
Cooling system:Liquid
Gearbox:Automatic
Transmission type,
final drive:
Chain
Clutch:Centrifugal clutch (adjustable)
Exhaust system:Aluminium
Chassis, suspension, brakes and wheels
Frame type:Double grinded central double-cradle-type frame
Rake (fork angle):24.0°
Trail:90 mm (3.5 inches)
Front suspension:Marzocchi Ă˜ 32 mm (1.26
Front suspension travel:185 mm (7.3 inches)
Rear suspension:WP mono shock
Rear suspension travel:185 mm (7.3 inches)
Front tyre dimensions:60/100-12
Front brakes:Single disc. Bremo
Front brakes diameter:160 mm (6.3 inches)
Rear brakes:Single disc. Bremo
Rear brakes diameter:140 mm (5.5 inches)
Physical measures and capacities
Dry weight:39.8 kg (87.7 pounds)
Seat height:684 mm (26.9 inches) If adjustable, lowest setting.
Ground clearance:252 mm (9.9 inches)
Wheelbase:1,032 mm (40.6 inches)
Fuel capacity:2.30 litres (0.61 gallons)
Other specifications
Starter:Kick
Color options:Orange
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 10 KTM 50 SX discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the moped's reliability, repair costs, etc.

Show any 2010 KTM 50 SX for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such mopeds are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.


Rating sample for this KTM moped
Offroad capabilities for the 2010 KTM 50 SX:


(69.1 out of 100)

Click here for complete rating. You can also compare bikes.
