| General information |
|---|

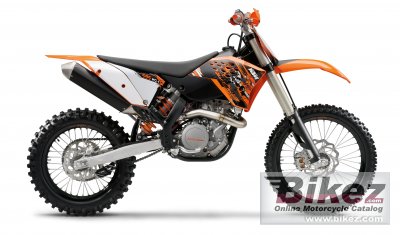

| Model: | KTM 505 XC-F |
| Year: | 2009 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 477.52 ccm (29.14 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Compression: | 12.5:1 |
| Bore x stroke: | 100.0 x 60.8 mm (3.9 x 2.4 inches) |
| Fuel system: | Carburettor. Keihin MX FCR 39 |
| Valves per cylinder: | 4 |
| Fuel control: | SOHC |
| Starter: | Electric |
| Lubrication system: | Pressure lubrication with 2 Eaton pumps |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type
final drive: | Chain |
| Clutch: | Wet multi-disc clutch, operated hydraulically |
| Physical measures |
|---|
| Dry weight: | 108.3 kg (238.8 pounds) |
| Seat height: | 985 mm (38.8 inches) If adjustable, lowest setting. |
| Ground clearance: | 380 mm (15.0 inches) |
| Wheelbase: | 1,475 mm (58.1 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Central double-cradle-type 25CrMo4 |
| Rake (fork angle): | 26.5° |
| Front suspension: | WP USD, 48 mm |
| Front suspension travel: | 300 mm (11.8 inches) |
| Rear suspension: | WP monoshock PDS |
| Rear suspension travel: | 335 mm (13.2 inches) |
| Front tyre dimensions: | 80/100-21 |
| Rear tyre dimensions: | 110/100-18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Exhaust system: | Aluminium |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 9.00 litres (2.38 gallons) |
