| General information |
|---|

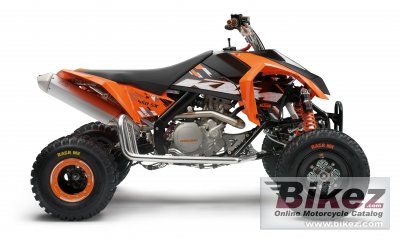

| Model: | KTM 450 SX |
| Year: | 2012 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 510.40 ccm (31.14 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Engine details: | Cam levers, drive via helical gear pair and tooth-wheel chain |
| Compression: | 11.0:1 |
| Bore x stroke: | 97.0 x 60.8 mm (3.8 x 2.4 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. Keihin MX FCR 41 |
| Fuel control: | SOHC |
| Ignition: | Kokusan digital 4K-3B |
| Lubrication system: | Pressure lubrication with 2 Eaton pumps |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multi-disc clutch, operated hydraulically |
| Driveline: | 14:38 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Chromoly (25 CrMo4). Subframe: Aluminum. |
| Front suspension: | Ohlins fully adjustable, Twin Chromoly A-arms |
| Front suspension travel: | 244 mm (9.6 inches) |
| Rear suspension: | Ohlins PDS Mono-shock, Fully Adjustable, Chromoly Swingarm |
| Rear suspension travel: | 258 mm (10.2 inches) |
| Front tyre dimensions: | 20/7-10 |
| Rear tyre dimensions: | 20/11-9 |
| Front brakes: | Single disc. Floating Wave discs, 4-piston fixed caliper |
| Front brakes diameter: | 180 mm (7.1 inches) |
| Rear brakes: | Single disc. Single piston floating caliper |
| Rear brakes diameter: | 200 mm (7.9 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 165.0 kg (363.8 pounds) |
| Seat height: | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Ground clearance: | 265 mm (10.4 inches) |
| Wheelbase: | 1,280 mm (50.4 inches) |
| Fuel capacity: | 10.30 litres (2.72 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Orange/black |
