06 KTM 450 SX specificationsKTM 450 SX 2006

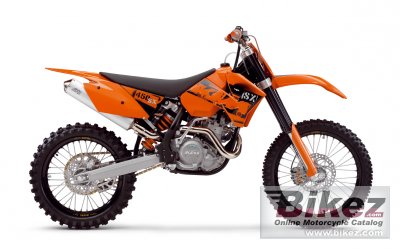

2006 KTM 450 SX photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2006 KTM 450 SX imageShow more 2006 KTM 450 SX images
2006 KTM 450 SX

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
Which one of us wouldn’t gladly have a MX1-Racer in the garageż With the KTM 450 SX you are damn close to doing just that. It is the basis of our racing successes in the top class and with its agile handling and linear engine characteristics, it’s very convincing. Modern styling, noble details and high-quality components make it clear once more: the 450 SX is the one to win on.

General information
Model:KTM 450 SX
Year:2006
Category:Cross / motocross
Rating:65 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:449.39 ccm (27.42 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:12.0:1
Bore x stroke:95.0 x 63.4 mm (3.7 x 2.5 inches)
Valves per cylinder:4
Fuel system:Carburettor. Keihin MX FCR 41
Fuel control:OHC
Ignition:Kokusan digital 4K-3A
Lubrication system:Pressure lubrication with 2 Eaton pumps
Cooling system:Liquid
Gearbox:4-speed
Clutch:Wet multi-disc clutch, operated hydraulically
Exhaust system:Aluminum
Chassis, suspension, brakes and wheels
Frame type:Central double-cradle-type 25 CrMo4
Rake (fork angle):26.5°
Trail:112 mm (4.4 inches)
Front suspension:WP-USD 48 mm (1.89 inches)
Front suspension travel:300 mm (11.8 inches)
Rear suspension:WP-PDS shock absorber
Rear suspension travel:335 mm (13.2 inches)
Front tyre dimensions:80/100-21
Rear tyre dimensions:110/90-19
Front brakes:Single disc
Front brakes diameter:260 mm (10.2 inches)
Rear brakes:Single disc
Rear brakes diameter:220 mm (8.7 inches)
Physical measures and capacities
Dry weight:105.2 kg (231.9 pounds)
Seat height:925 mm (36.4 inches) If adjustable, lowest setting.
Overall width:450 mm (17.7 inches)
Ground clearance:380 mm (15.0 inches)
Wheelbase:1,481 mm (58.3 inches)
Fuel capacity:7.00 litres (1.85 gallons)
Other specifications
Starter:Kick
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 06 KTM 450 SX discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2006 KTM 450 SX for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.


Rating sample for this KTM bike
Design and look for the 2006 KTM 450 SX:


(68.3 out of 100)

Click here for complete rating. You can also compare bikes.
