2011 KTM 350 SX-F specifications, pictures, reviews and rating

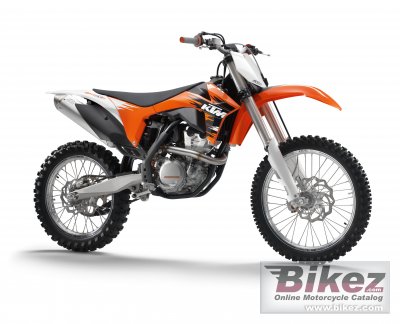

Picture credits - KTM. Click to submit more pictures.
|KTM's profilation of this bike|
|With a new engine, fuel injection system and smaller displacement, new bodywork, new chassis - in fact, a whole new concept. What with the first Grand Prix victory and racing to the top of the overall standings in the MX1 class after only two races, maybe even the beginning of a new era in motocross ...|
|Model:||KTM 350 SX-F|
|Category:||Enduro / offroad|
|Rating:||72.6 out of 100. Show full rating and compare with other bikes|
|Engine and transmission|
|Displacement:||349.70 ccm (21.34 cubic inches)|
|Engine type:||Single cylinder, four-stroke|
|Bore x stroke:||88.0 x 57.5 mm (3.5 x 2.3 inches)|
|Fuel system:||Carburettor. Keihin EFI, throttle body 42 mm|
|Lubrication system:||Pressure lubrication with 2 oil pumps|
|Clutch:||Wet mDouble disk clutch, operated hydraulically|
|Driveline:||14:50. Primary drive: 24:73.|
|Chassis, suspension, brakes and wheels|
|Frame type:||Central double-cradle-type 25CrMo4. Subframe: Aluminium.|
|Rake (fork angle):||26.5°|
|Front suspension:||WP USD 48 mm (1.89 in)|
|Front suspension travel:||185 mm (7.3 inches)|
|Rear suspension:||WP-Monoshock with linkage|
|Rear suspension travel:||185 mm (7.3 inches)|
|Front tyre dimensions:||80/100-21|
|Rear tyre dimensions:||110/90-19|
|Front brakes:||Single disc|
|Front brakes diameter:||260 mm (10.2 inches)|
|Rear brakes:||Single disc|
|Rear brakes diameter:||220 mm (8.7 inches)|
|Wheels:||1.60 x 21in., 2.15 x 19in. Excel|
|Physical measures and capacities|
|Dry weight:||103.9 kg (229.1 pounds)|
|Seat height:||992 mm (39.1 inches) If adjustable, lowest setting.|
|Ground clearance:||375 mm (14.8 inches)|
|Wheelbase:||1,495 mm (58.9 inches)|
|Fuel capacity:||7.50 litres (1.98 gallons)|
|Parts and accessories||Check out parts and accessories from our other partners.|
|Ask questions||Join the 11 KTM 350 SX-F discussion group.|
|Insurance, loans, tests||Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.|
|Related bikes||List related bikes for comparison of specs|
Buying a bike starts at BikezGet a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.
Show any 2011 KTM 350 SX-F for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.
You are also welcome to read and submit motorcycle reviews.
|Rating sample for this KTM bike|
Design and look for the 2011 KTM 350 SX-F:
(77.1 out of 100)
Click here for complete rating. You can also compare bikes.
